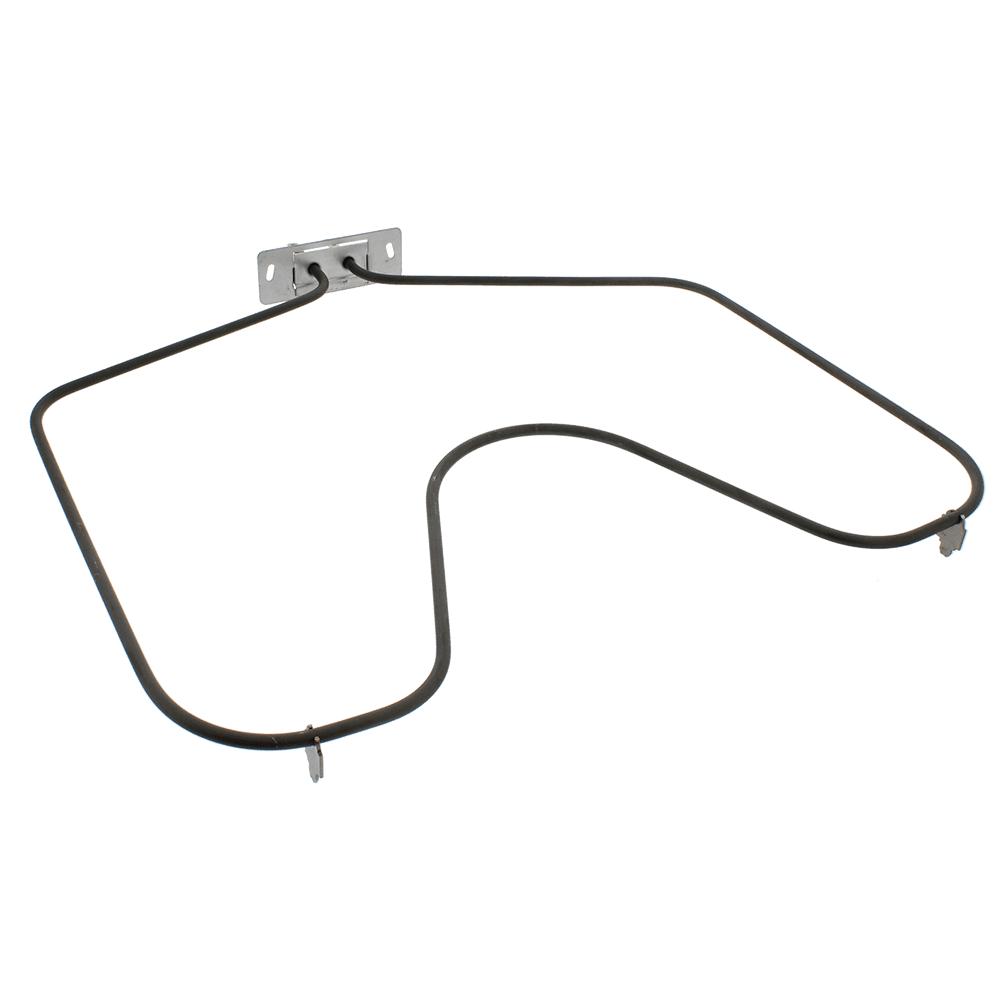

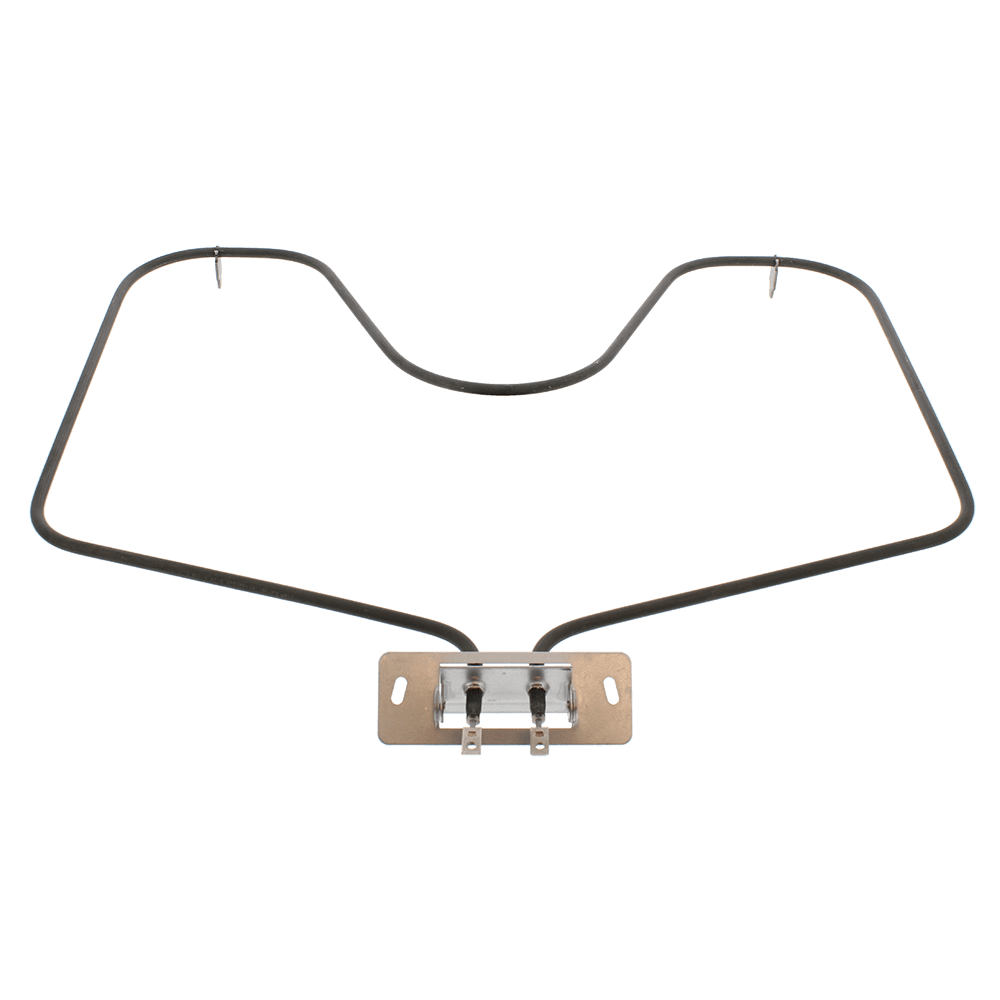

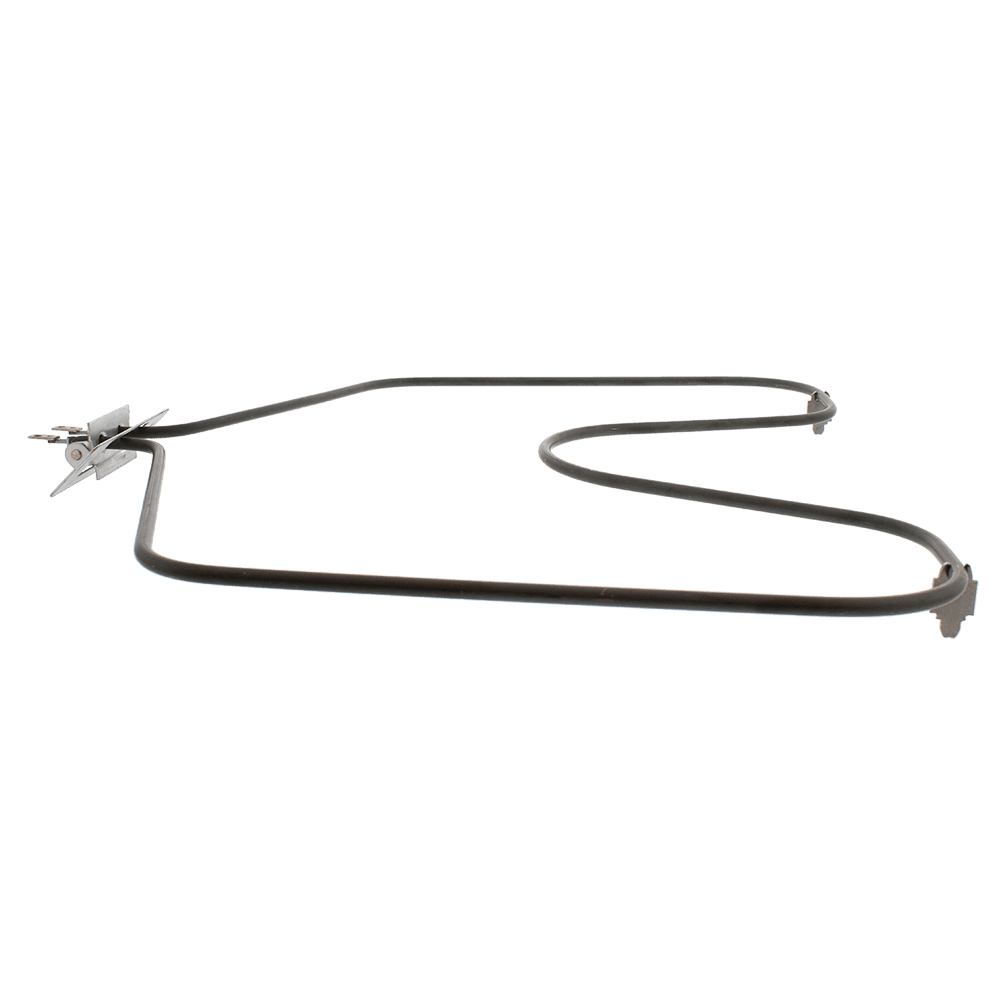

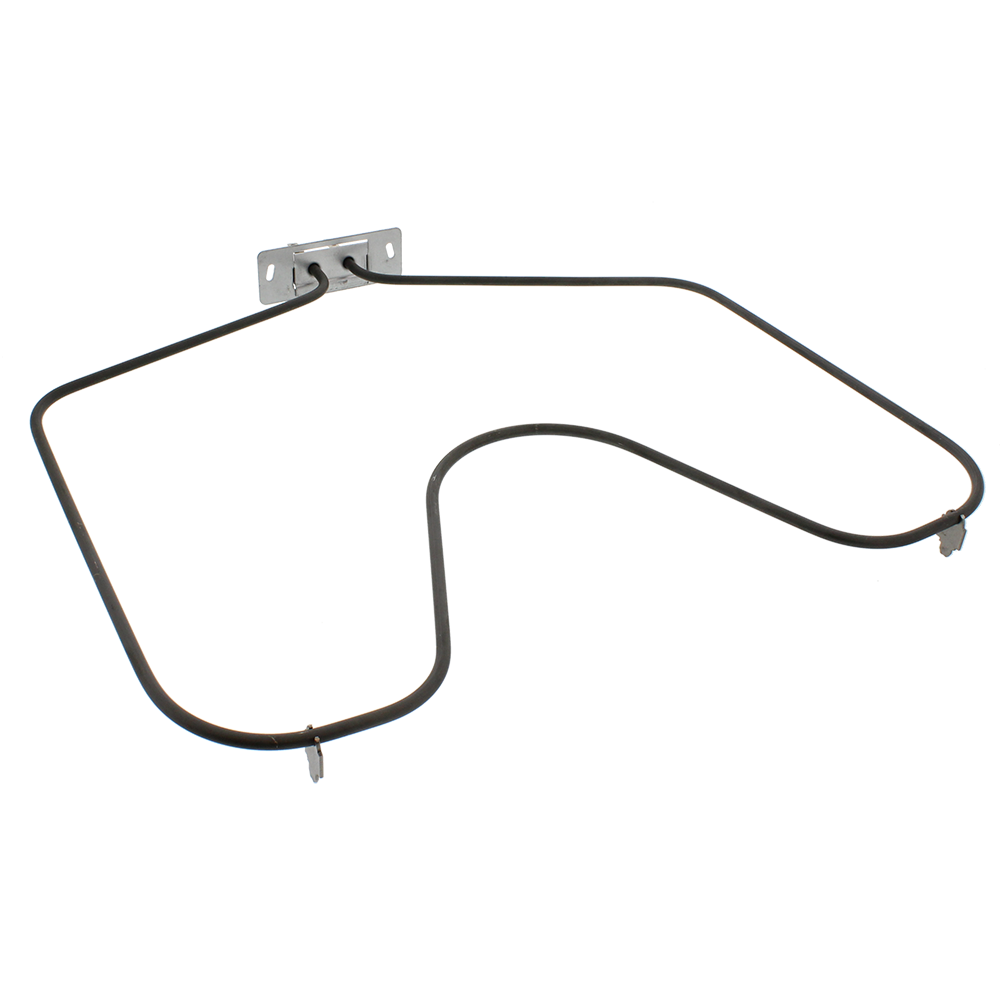

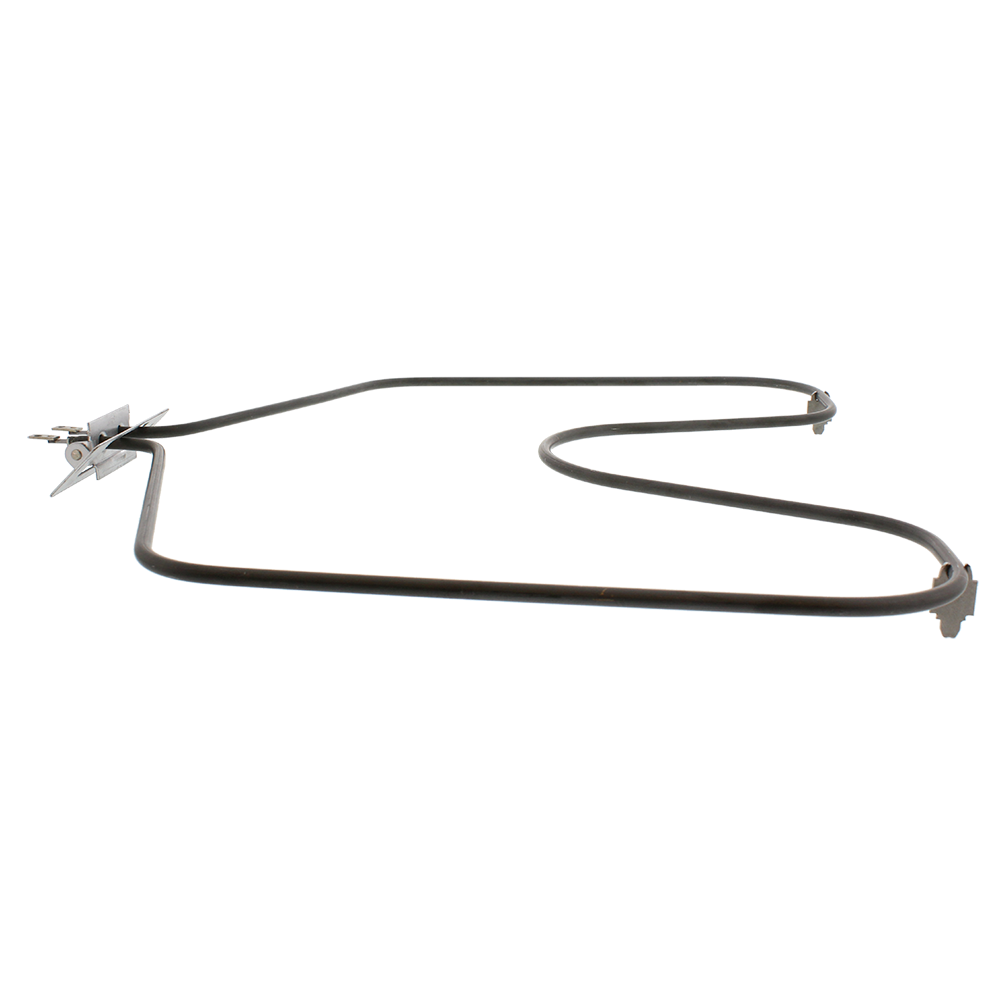

Part No. ER WB44X5099 Bake Element for GE


17 in stock

    Inventory at our locations
  • South Dallas: in inventory
  • East Dallas: in inventory
  • Tyler: in inventory
  • Arlington: in inventory


Part purpose:

Bake element causes the oven cavity to heat to the temperature set on the oven control.

Part location in Range or Wall Oven:

The oven element is in the bottom of the oven cavity sitting on the oven floor below the oven racks and is attached to the back wall of the oven.

Part failure symptoms:

Bake element will not get hot.

Part diagnosis:

Bake elements may fail in a manner that resembles a miniature firework display that leaves the element ragged and burned.  They can also fail with no visible evidence the bake element is bad.  The element can be removed by disconnecting all power from the range or oven.  Remove the screws attaching the element to the back wall of the oven.  Slide the bake element toward the front of the oven far enough to expose the wire connections.  Disconnect both wires from the element and take it to the nearest U-FIX-IT Appliance Parts store for free testing to confirm it is bad. Call the U-FIX-IT Appliance Parts store for free assistance with diagnosis.

Fits many GE, General Electric, Hotpoint ranges and ovens

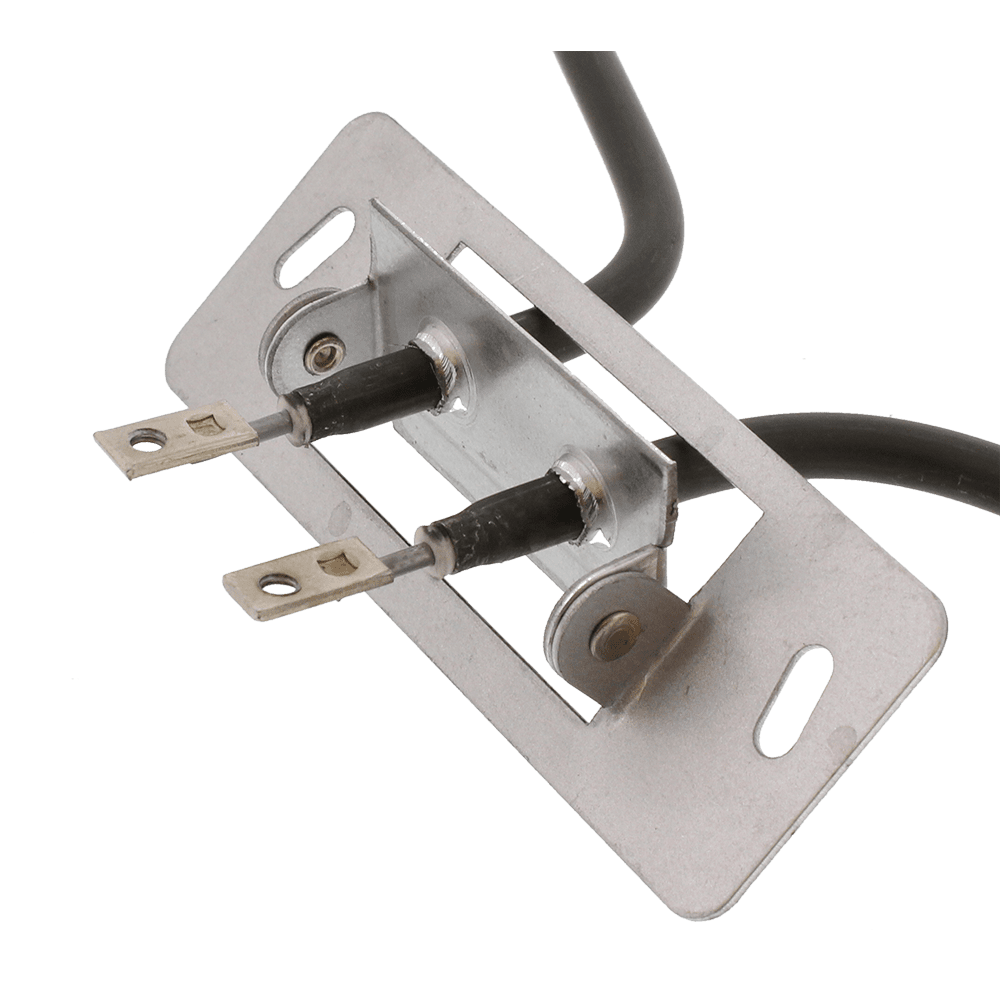

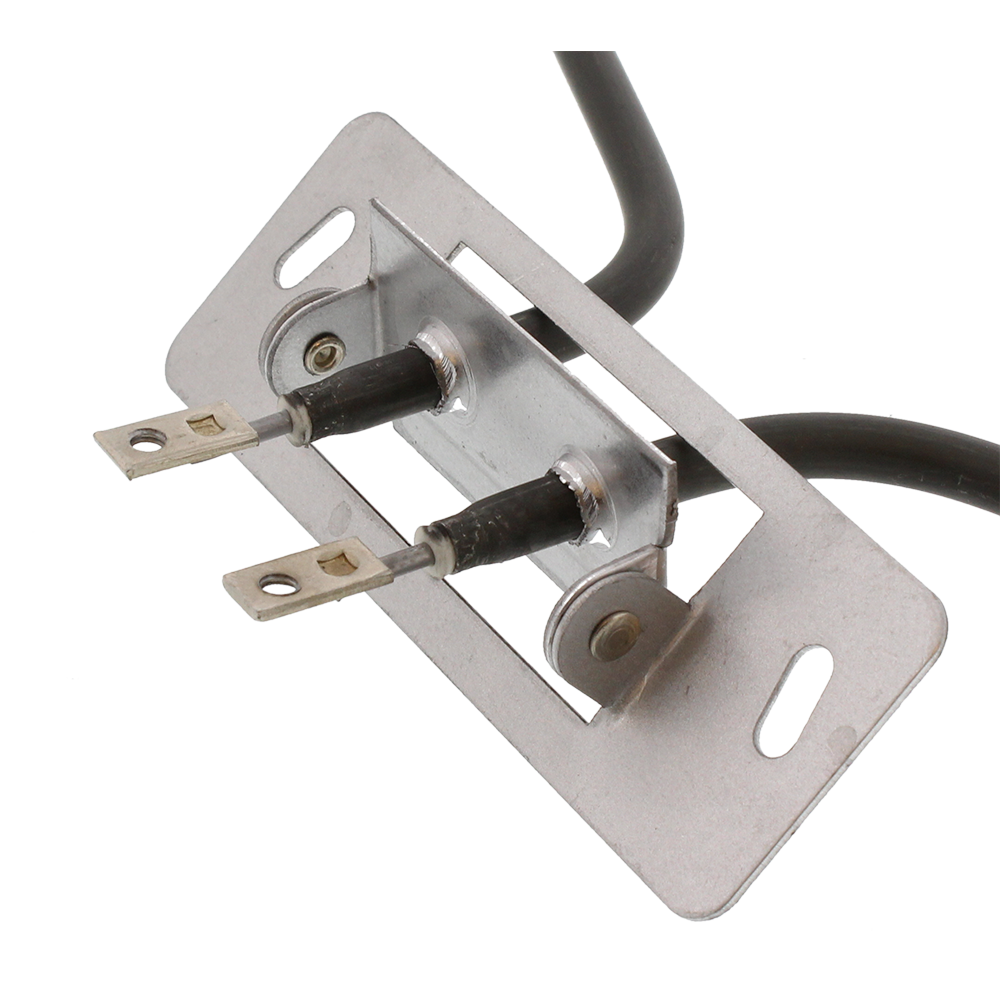

ER WB44X5099 bake element is a calrod element designed to produce an even heat.  250/208 volts, 2585/1940, watts with screw-in connections.  An exact match of the wattage is not necessary.

Cross Reference Info:

Replaces 202-872818-001 454816 B44X5099 CH44X5083 CH44X5099 ERB44X5099 ERWB44X5099 RP44X5099 TS44X5099 WB44X103 WB44X105 WB44X111 WB44X112 WB44X117 WB44X118 WB44X119 WB44X120 WB44X125 WB44X133 WB44X163 WB44X5083 WB44X5083R WB44X5098 WB44X5099 WB44X5099R WB49X40

Additional information

Weight 0.69 lbs

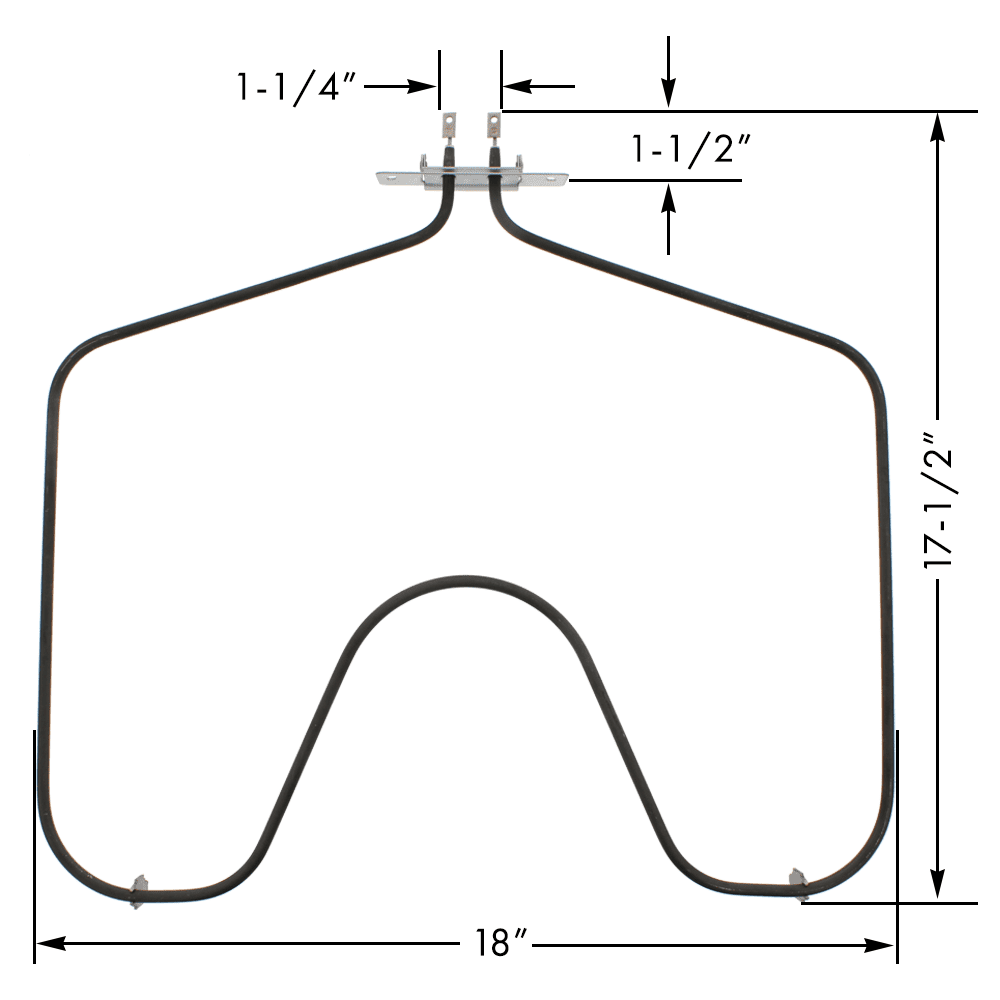

Dimensions 17.13 × 18.13 × 1.50 in
