Two “not so obvious” things to check that can stop all waterflow in your refrigerator.

Jun 14, 17 • News2 Comments

Here are two easy things to check when your refrigerator has both malfunctions of no water and no ice.  These are not the “broken parts” that we usually look for in the troubleshooting process. They are the icemaker supply line burst valve and the water filter.  Either one of these items can stop all flow of water in the refrigerator without being “broken.”  Other items can give these symptoms too, but these are quick and easy to check.

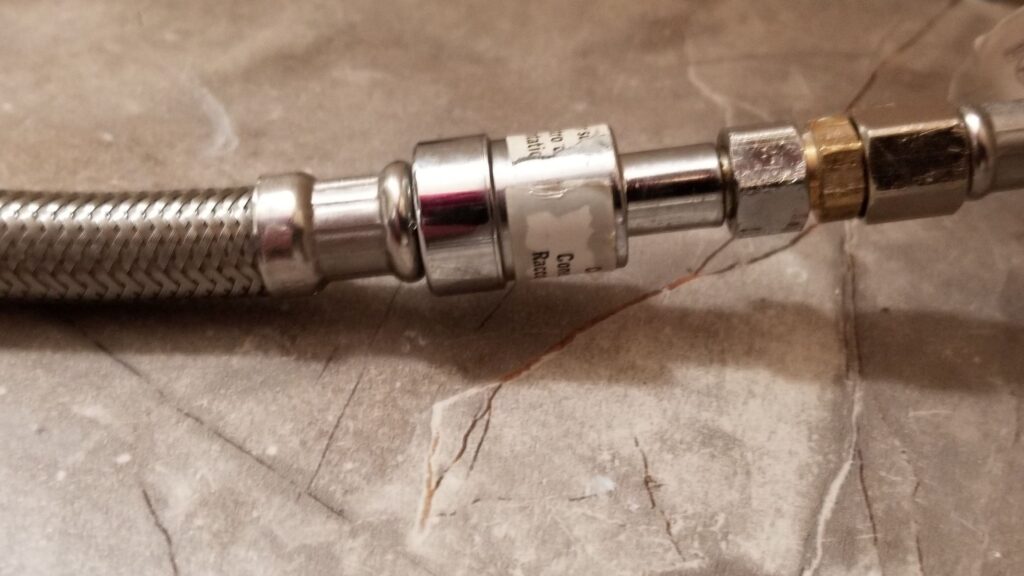

20170606 cropped anti flood valve

Icemaker Supply Line Burst Valve

The burst valve is an add-on item that may have been installed by a plumber or a refrigerator installer in the water line between the refrigerator and water shut off valve.  Not every refrigerator installation will have one. The purpose of the burst valve is to stop the water flow in the event the water line bursts and begins to flood the house.

The burst valve will also stop the flow of water if the water is turned on too quickly at the shutoff valve.  Some homeowners have inadvertently activated their burst valve when they shut the water off to change their water filter and then failed to open the shut off valve slowly.

Resetting the Icemaker Supply Line Burst Valve

  1. Turn off water at shutoff valve.
  2. Disconnect burst valve from shut off valve. This relieves the pressure.
  3. Reconnect the burst valve.
  4. Slowly turn on shut off valve.
  5. Test for water flow at water dispenser on door.

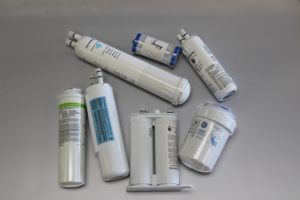

Filters assorted

Refrigerator Water Filter

Most refrigerator manufacturers (Whirlpool, GE, Hotpoint, Frigidaire, Electrolux, LG, Samsung, KitchenAid, etc..) offer refrigerators with built in water filters.  There comes a point where water filters can stop up completely and cutoff the water supply.  Replacing the filter will eliminate it as a possible cause of the stoppage.

There you have it. Check these two “not so obvious” items before beginning systematic troubleshooting for no water flow in your refrigerator .

More From Jim Plummer

Jim is an ex-Air Force pilot and a business school graduate of University of Texas at Austin. He has been in the appliance parts business since 1975.

Leave a Reply

*

*

2 Responses to “Two “not so obvious” things to check that can stop all waterflow in your refrigerator.”

  1. janice hughes says:

    If my refrigerator’s water flow works but icemaker doesn’t are there 2 different inlet valves for producing ice/water ? Or does the icemaker have it’s own valve ?

    • Jim Plummer says:

      Janice,

      Yes, the icemaker has a separate valve. The icemaker sends a signal to the water valve when it is time to refill. A simple test to determine if the icemaker is bad or if the water valve is bad follows.
      1. Fill the icemaker mold with water using a small cup.
      2. Wait two hours.
      3. If ice is made and kicked out into the bucket, then the water valve is bad.
      4. If the ice remains in the mold of the icemaker, then the ice maker is bad.

      If you would like more personalized help, give us a call with your model number for free diagnosis assistance. Thank you for your inquiry.

      Jim
