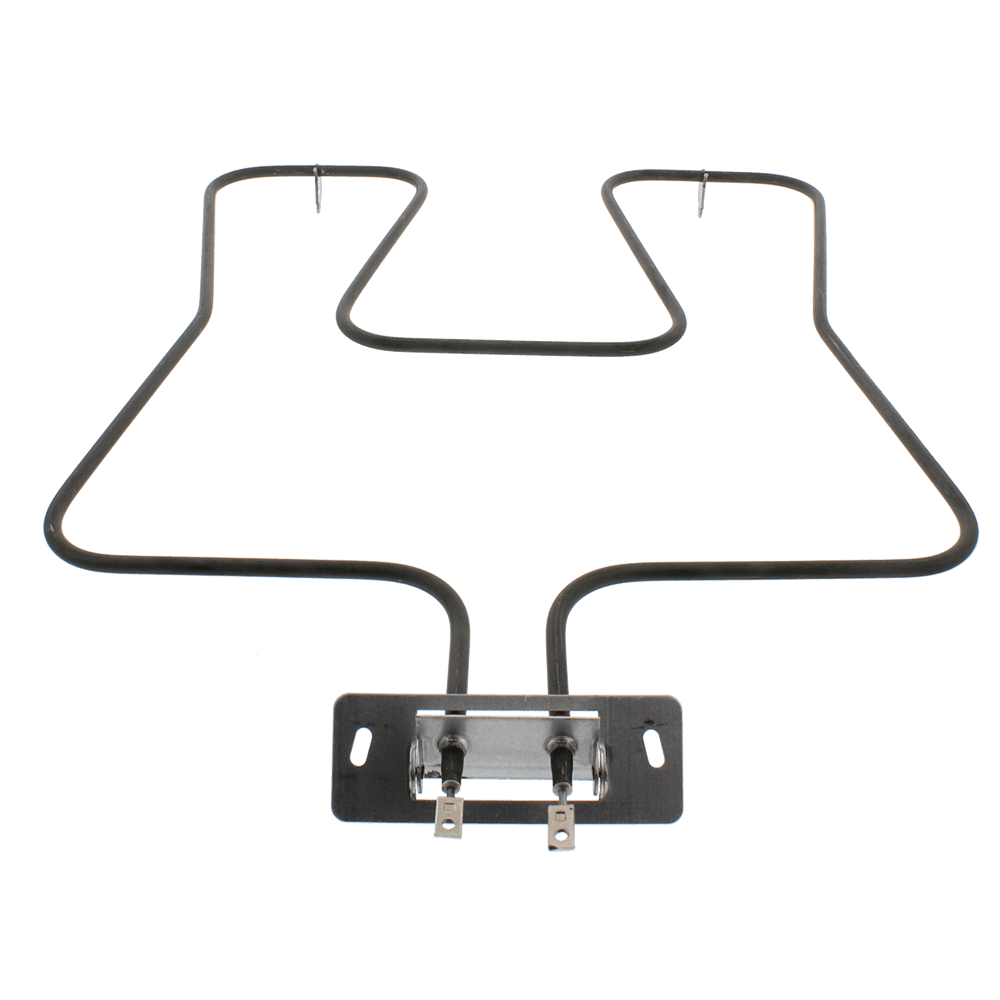

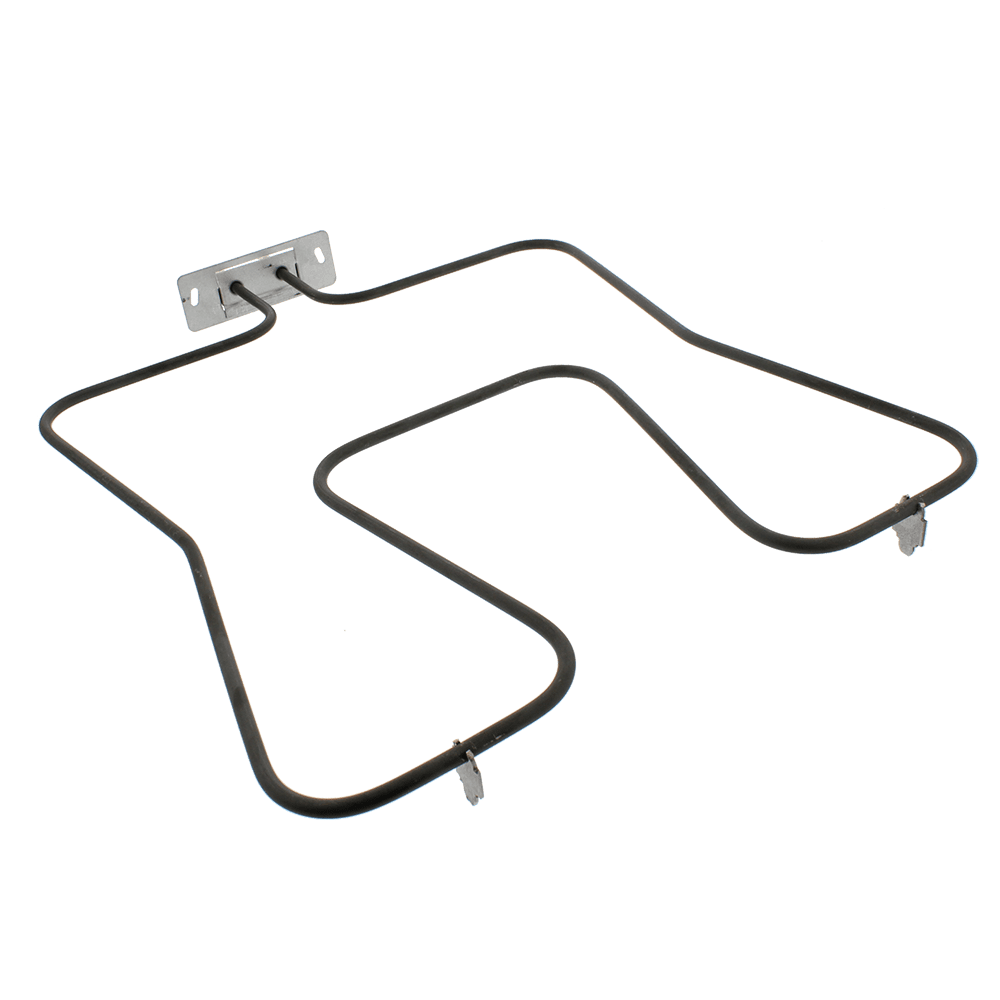

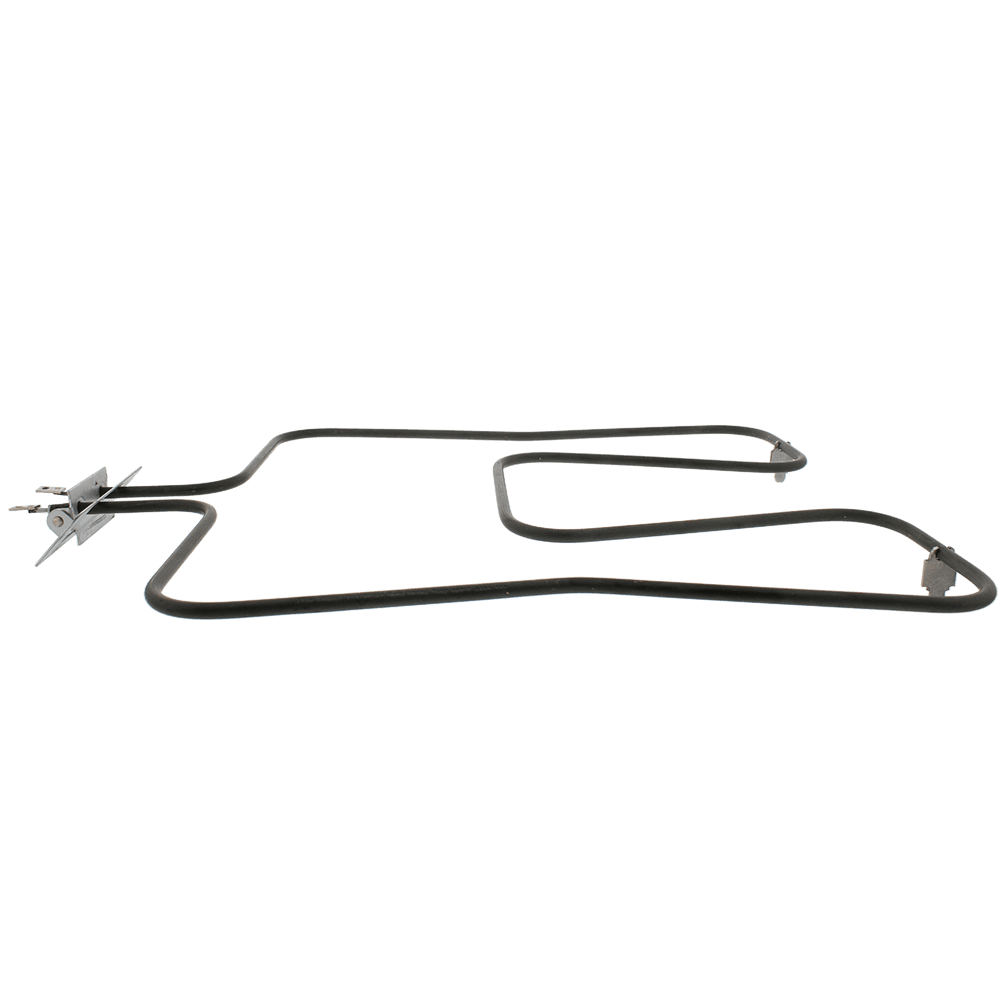

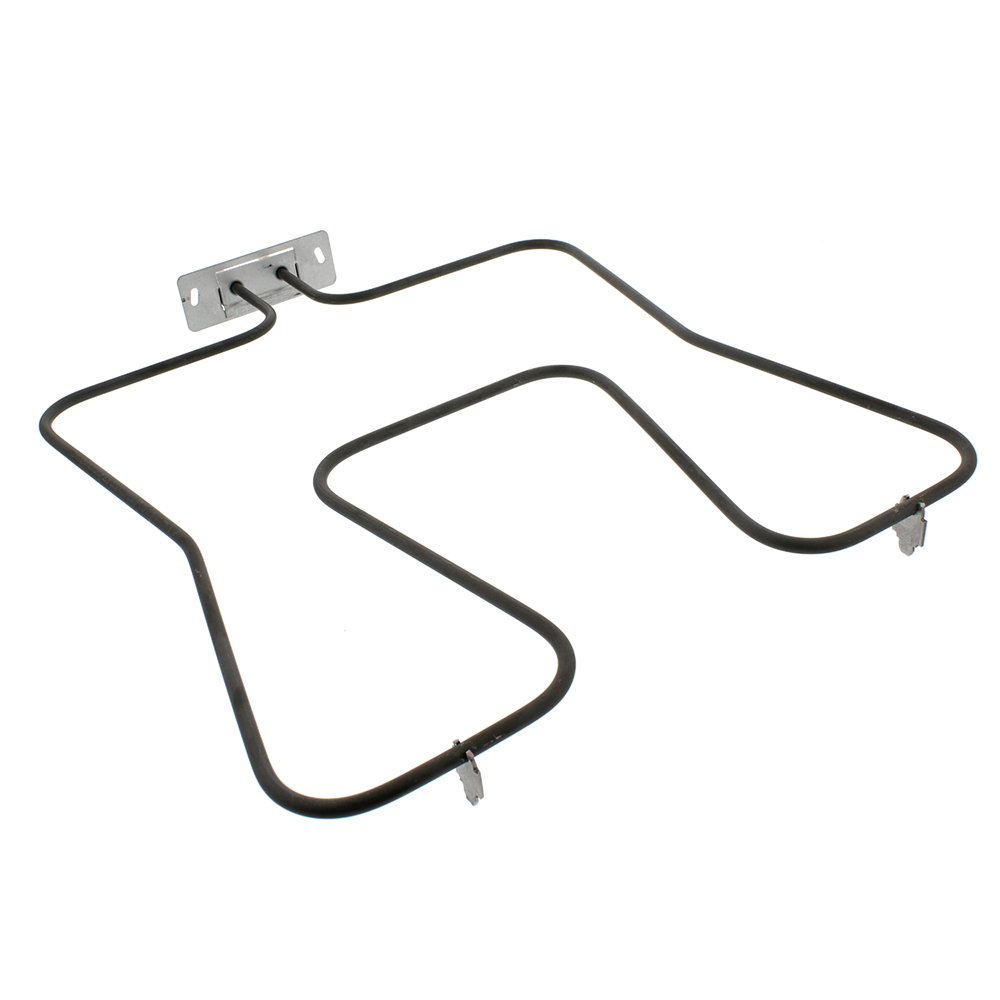

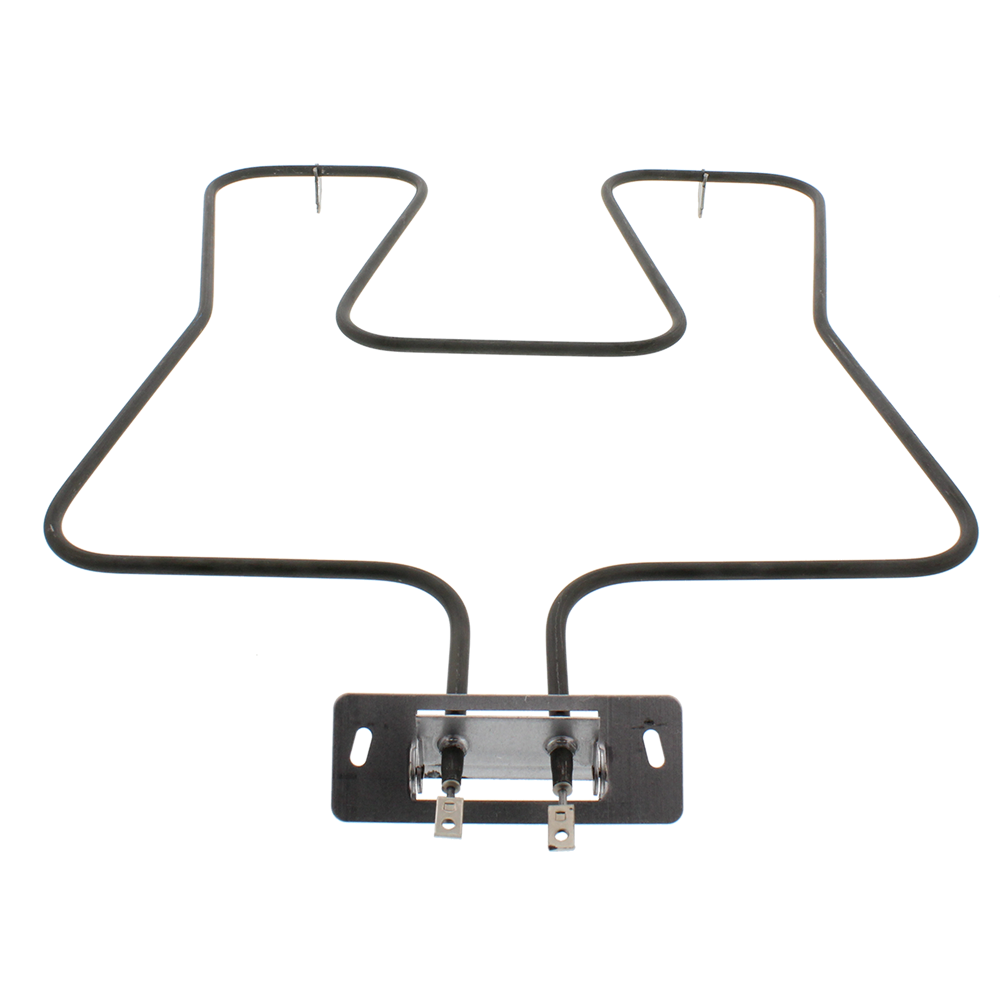

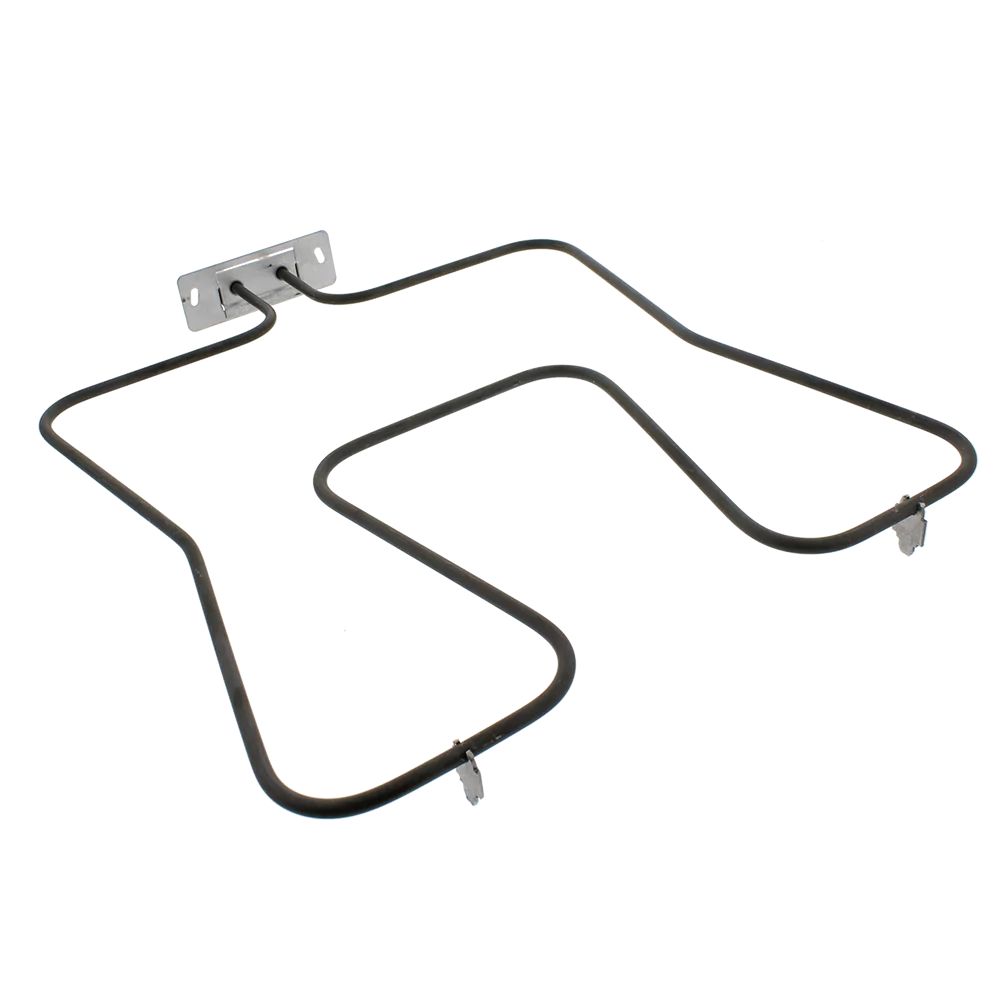

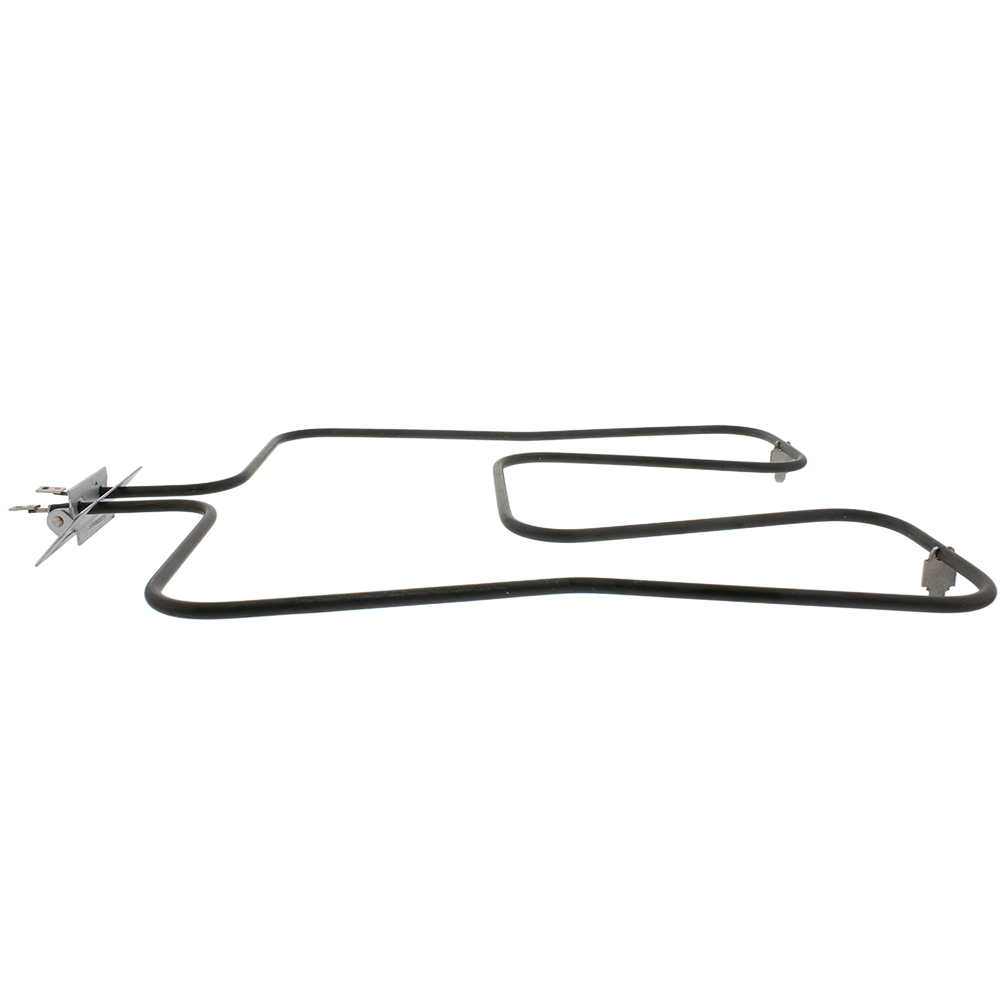

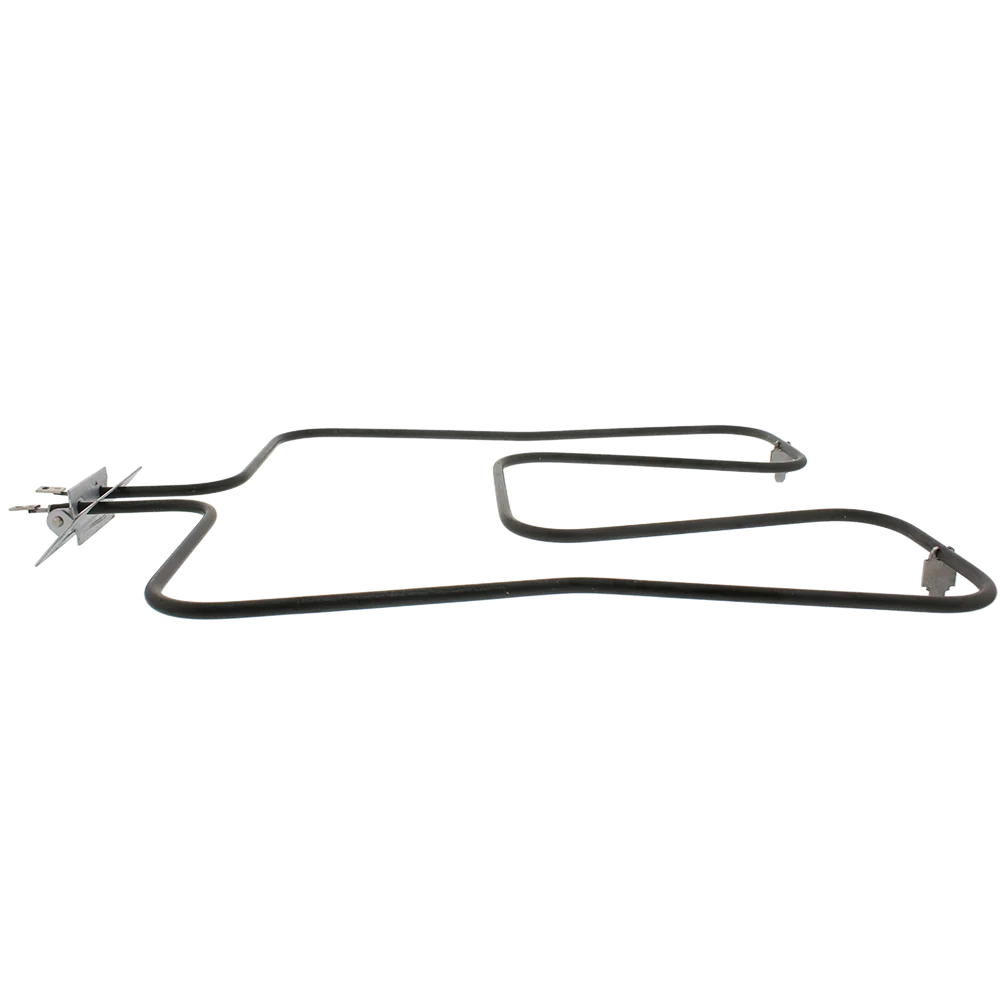

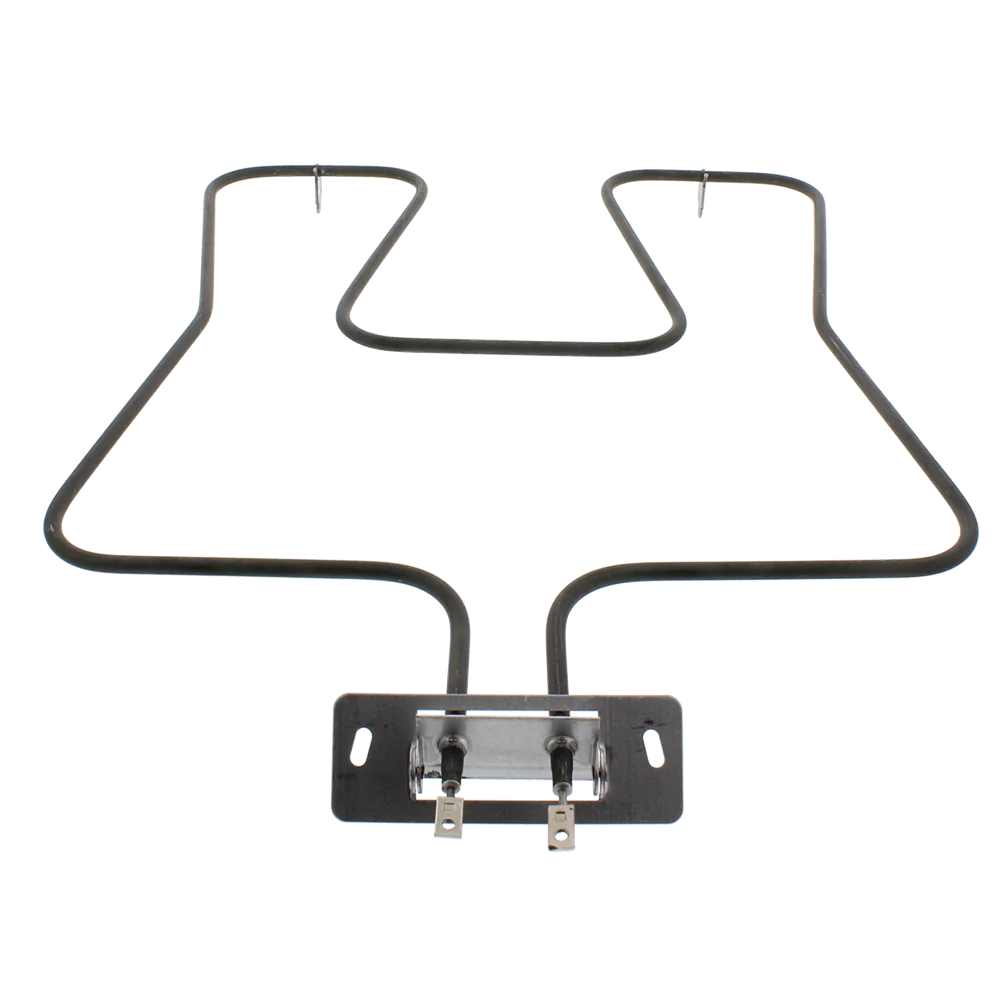

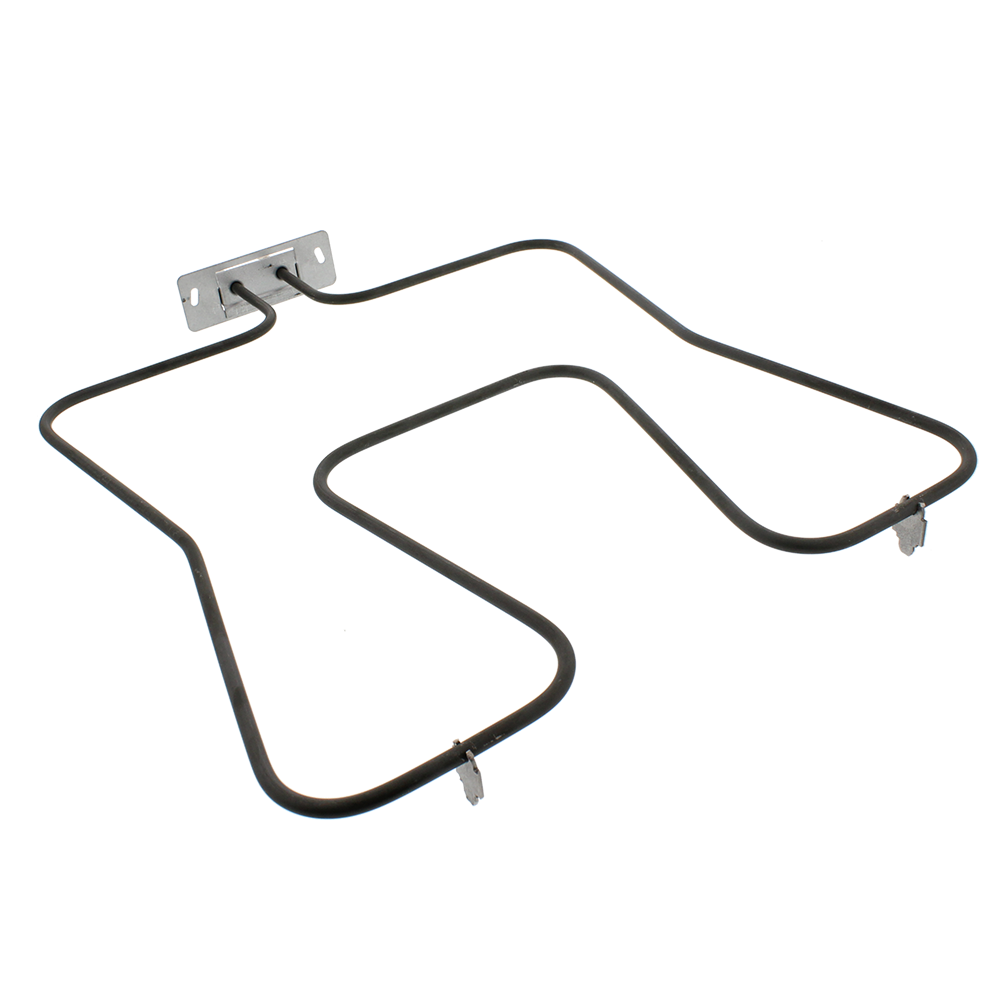

ER WB44X5043 Bake Element for GE

$36.25

1 in stock

    Inventory at our locations
  • South Dallas: 0 in inventory
  • East Dallas: 0 in inventory
  • Tyler: 0 in inventory
  • Arlington: 1 in inventory

Description

Part purpose:

Bake element causes the oven cavity to heat to the temperature set on the oven control.

Part location in Range or Wall Oven:

The oven element is in the bottom of the oven cavity sitting on the oven floor below the oven racks and is attached to the back wall of the oven.

Part failure symptoms:

Bake element will not get hot.

Part diagnosis:

Bake elements may fail in a manner that resembles a miniature firework display that leaves the element ragged and burned.  They can also fail with no visible evidence the bake element is bad.  The element can be removed by disconnecting all power from the range or oven.  Remove the screws attaching the element to the back wall of the oven.  Slide the bake element toward the front of the oven far enough to expose the wire connections.  Disconnect both wires from the element and take it to the nearest U-FIX-IT Appliance Parts store for free testing to confirm it is bad. Call the U-FIX-IT Appliance Parts store for free assistance with diagnosis.

Fits many GE, General Electric, Hotpoint ranges and ovens

Description:

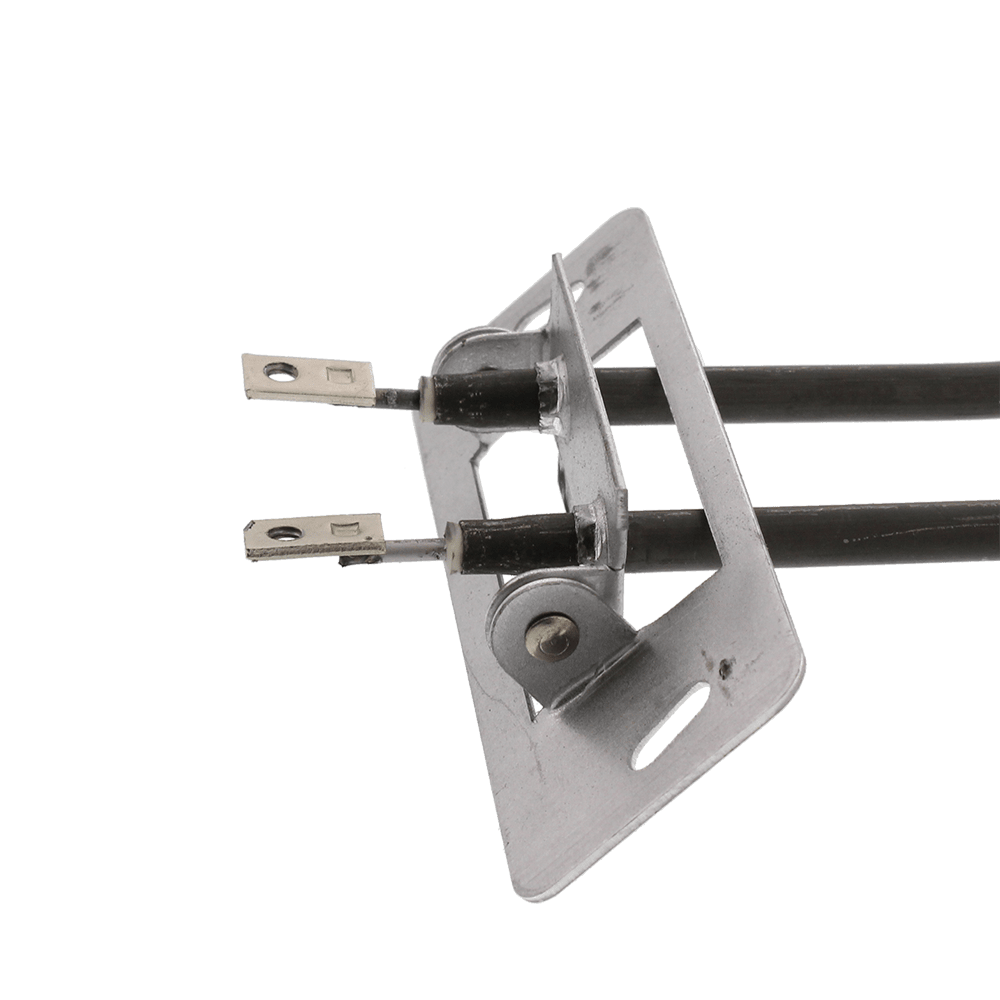

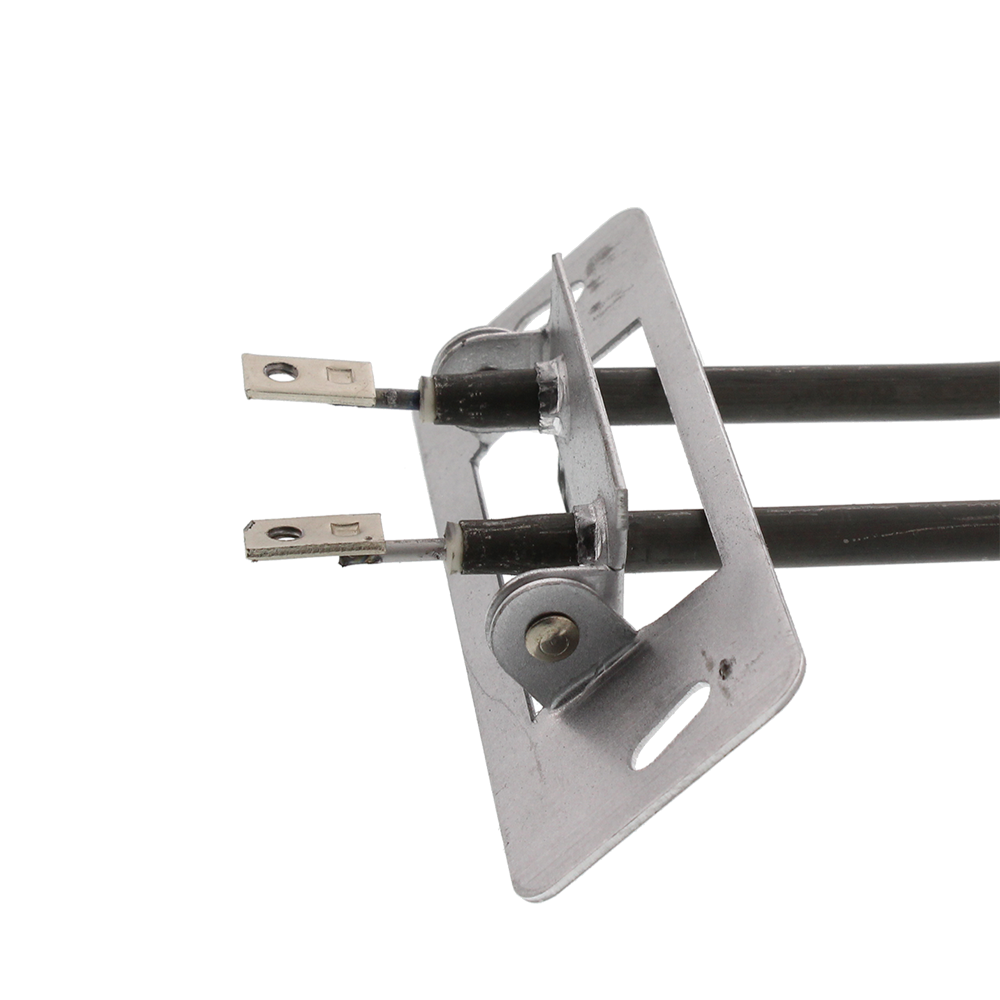

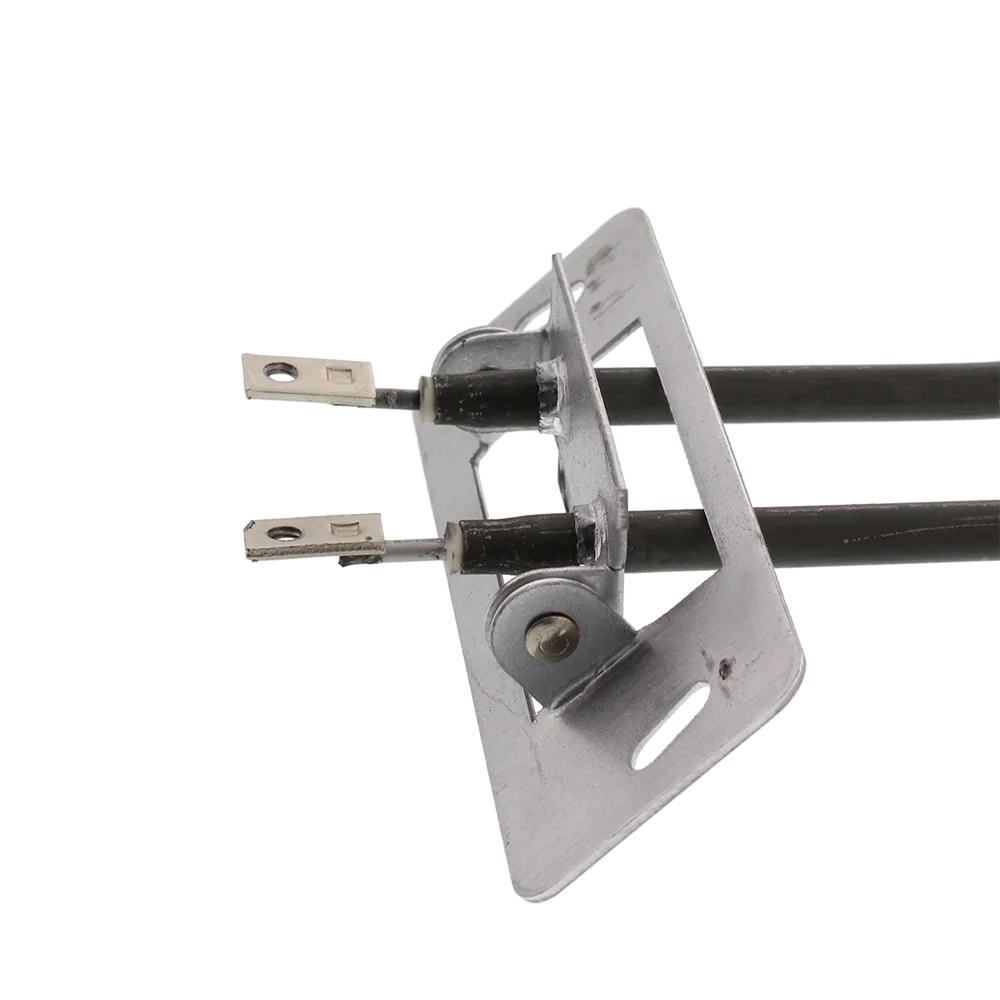

ER WB44X5043 bake element is a calrod element designed to produce an even heat.  250 volts, 3000 watts with screw-in connections.  An exact match of the wattage is not necessary.

Cross Reference Info:

Replaces 202-873885-001 454280 CH44X5025 CH44X5043 CH44X5044 ERB44X5043 RP44X5043 TS44X5043 WB44X142 WB44X142R WB44X143 WB44X2 WB44X4 WB44X5025 WB44X5028 WB44X5043 WB44X5043R WB44X5044 WB44X5049 WB44X5050 WB44X5078 WB44X5079 WB44X5080 WB44X5081 WB44X6 WB44X63 WB44X65 WB44X67 WB44X68 WB44X73 WB44X93 WB44X94 WB45X3 WB45X43 WB45X57

Also fits: GE #WB44X5043, Gemline #RP44X5043, Chromalox/Supco #CH44X5043, Zoppas #TS44X5043



Additional information

Weight 0.75 lbs

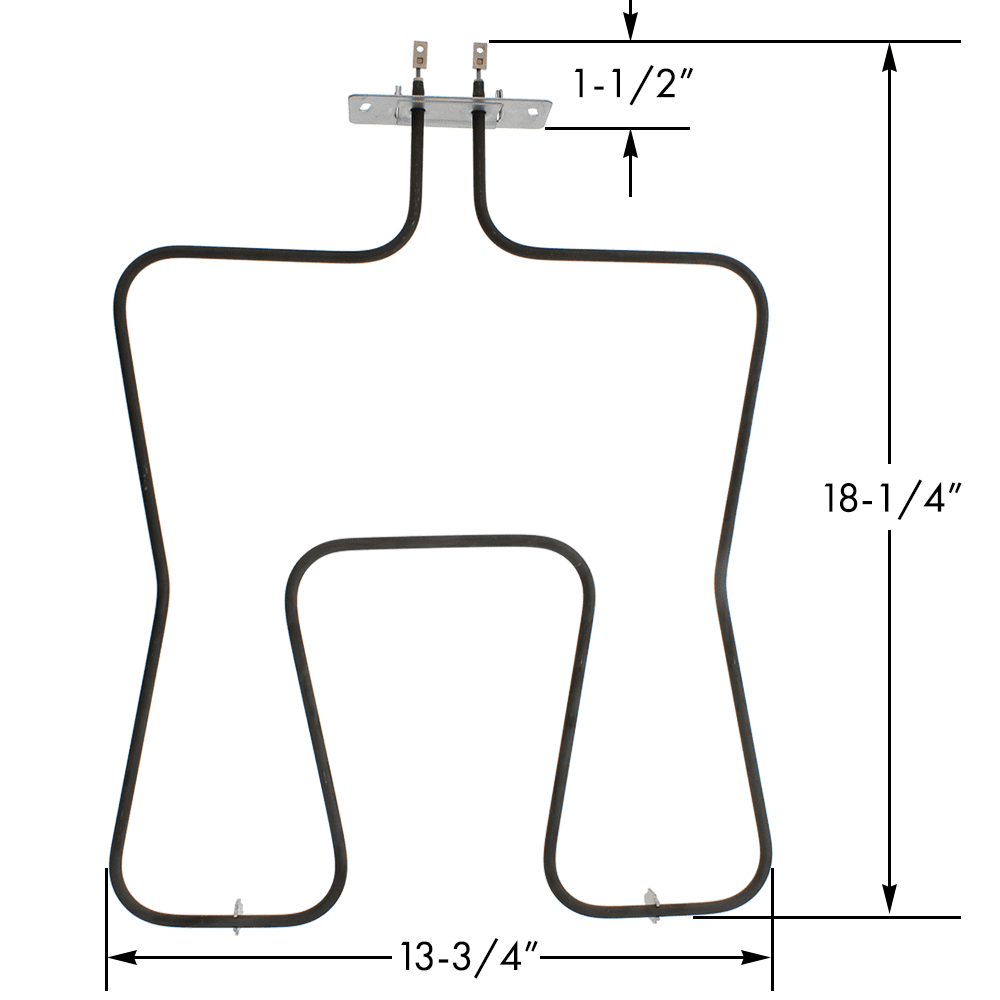

Dimensions 18.25 × 13.75 × 1.50 in
