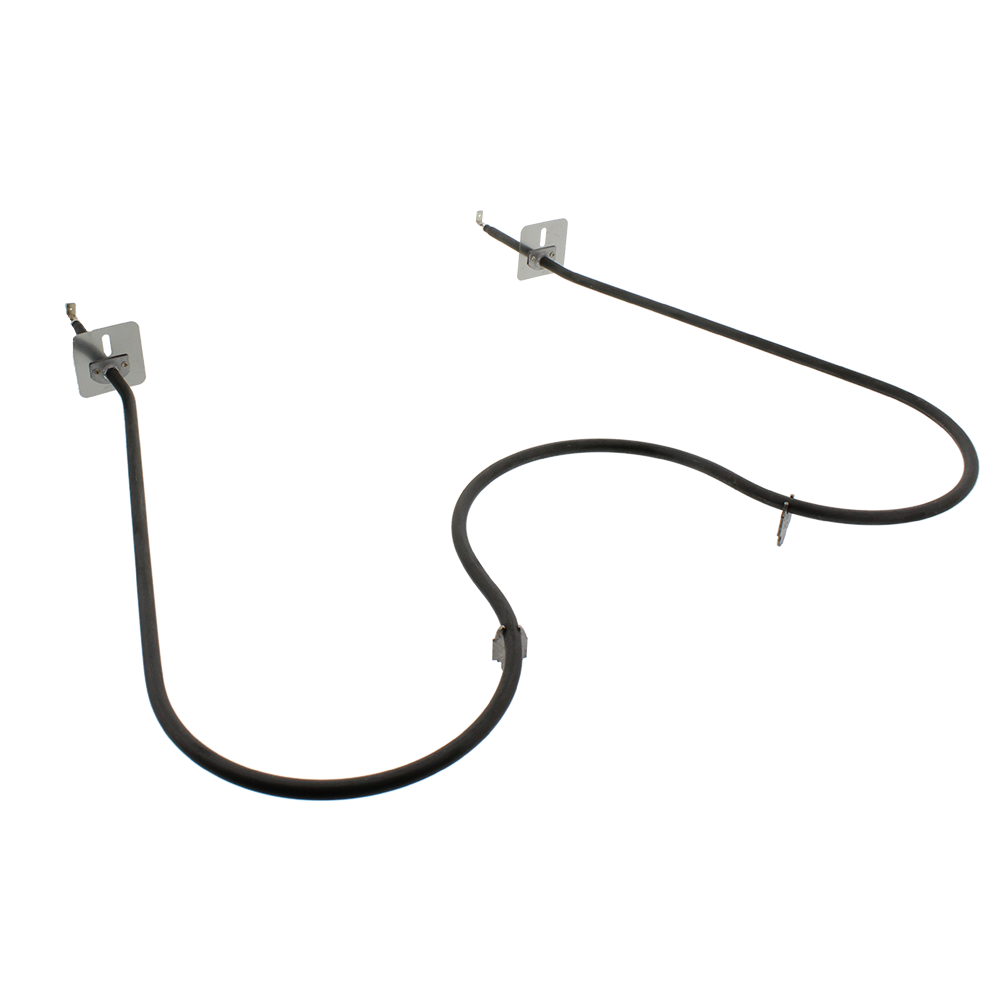

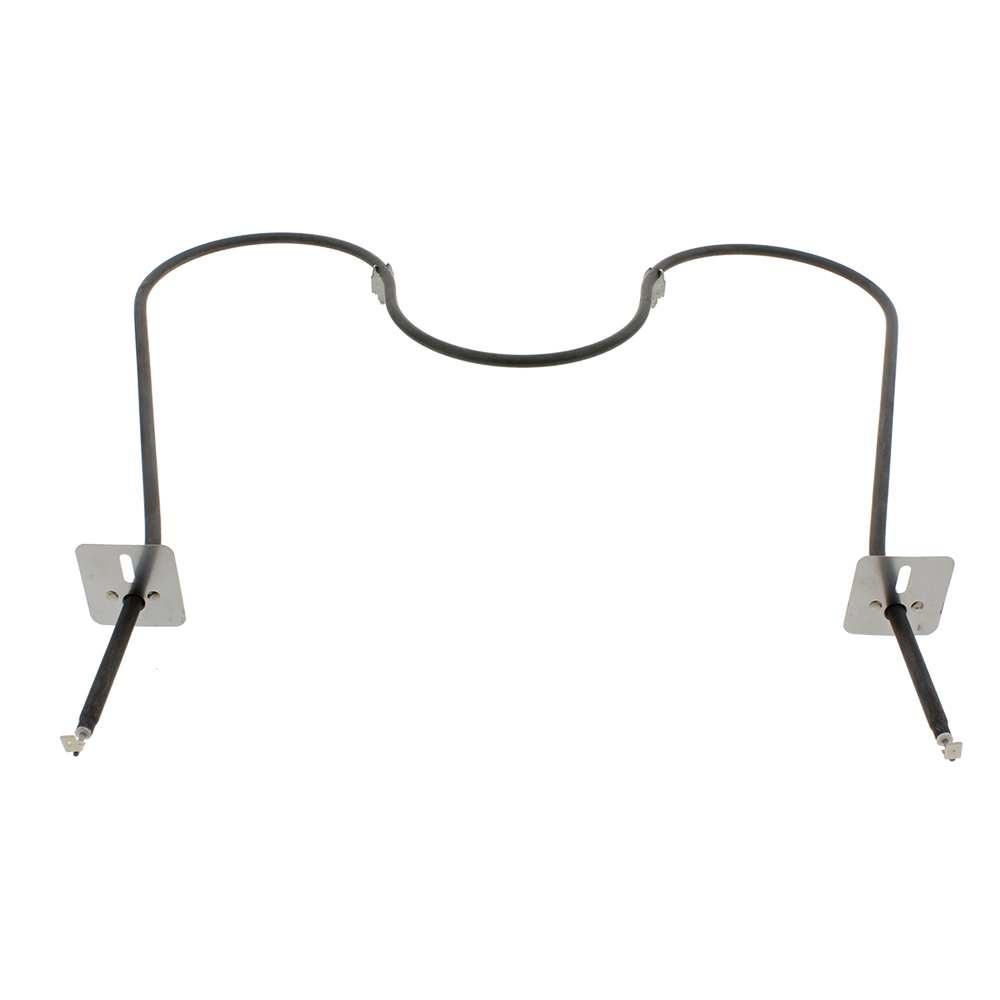

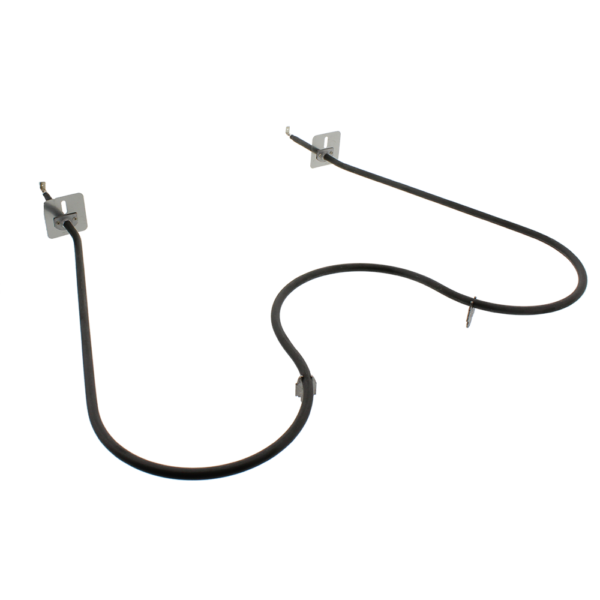

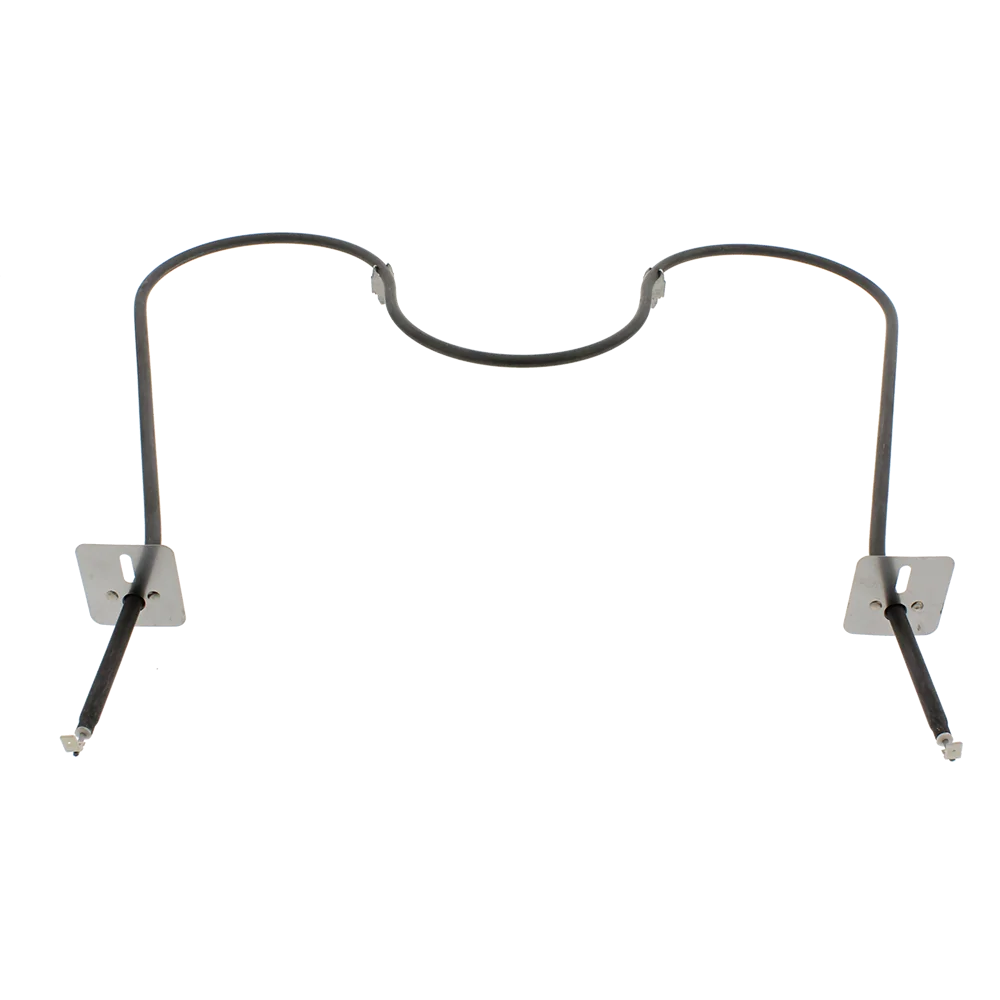

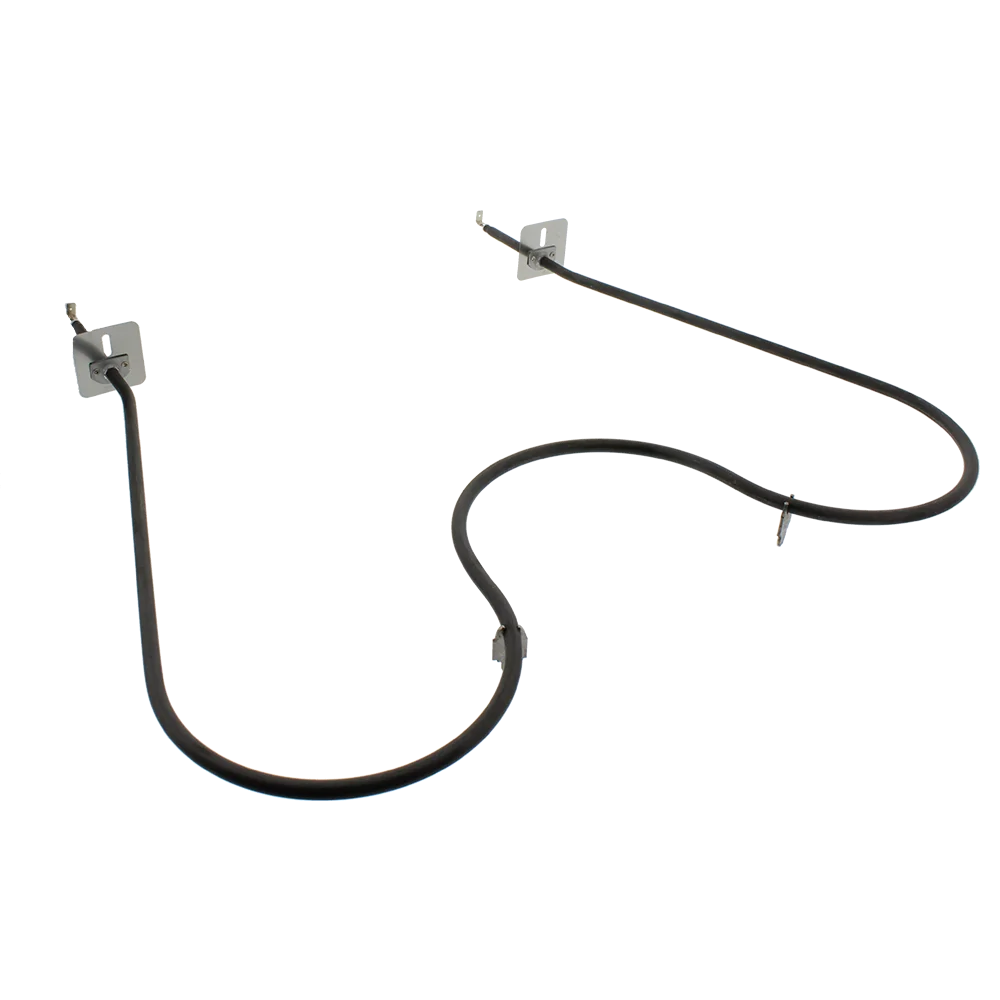

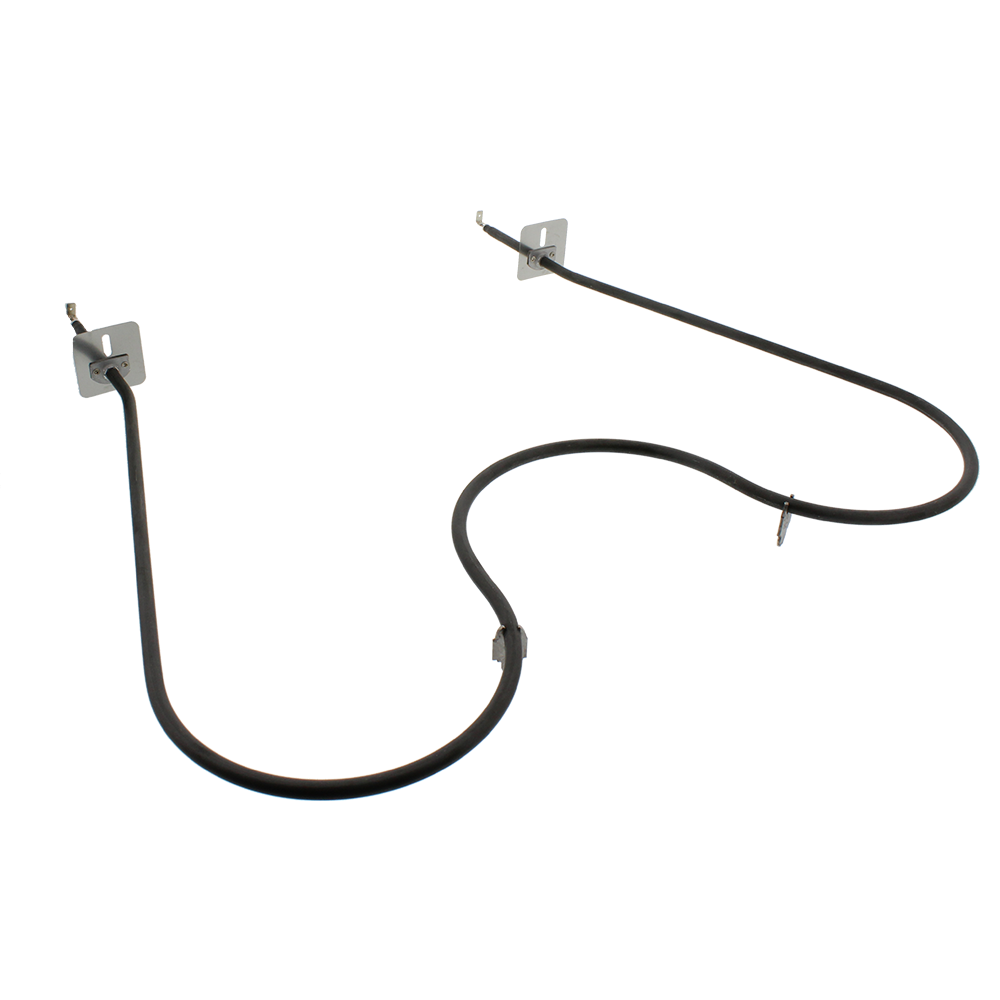

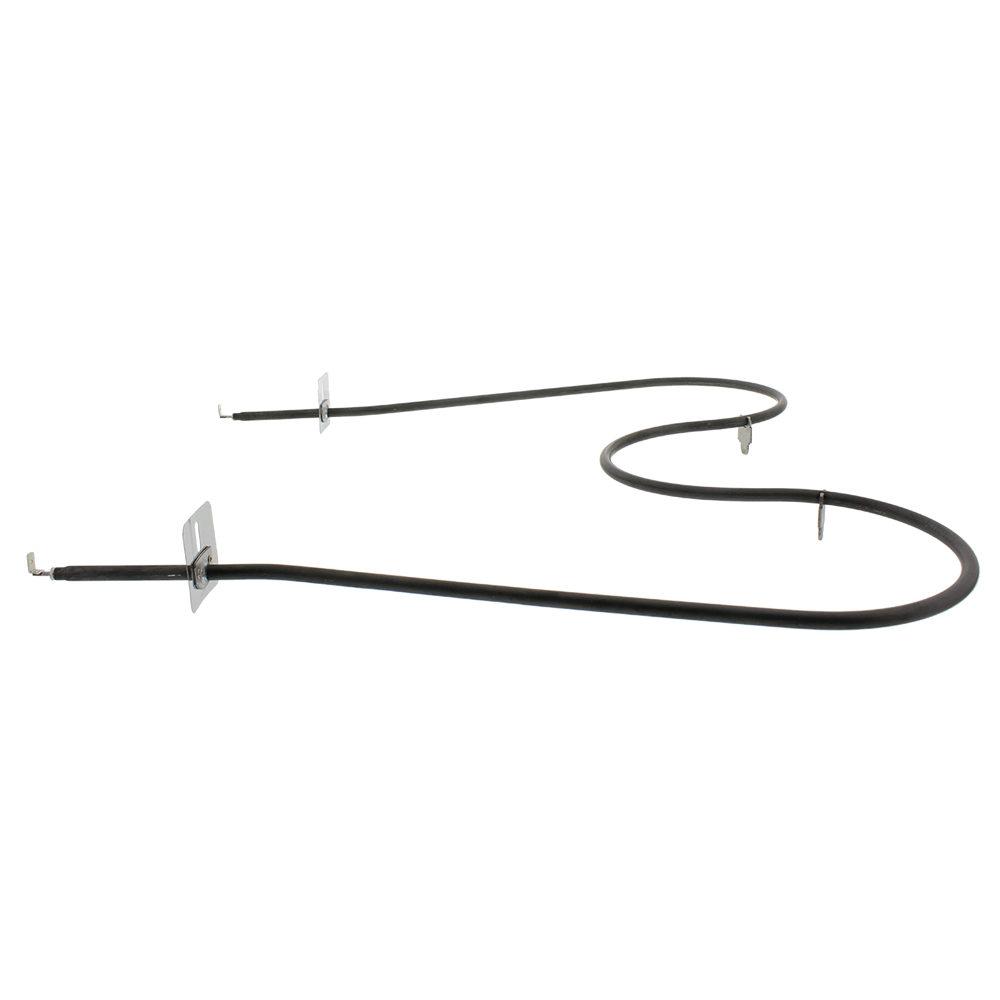

Part No. ER B775 Bake Element for Whirlpool


28 in stock

    Inventory at our locations
  • South Dallas: in inventory
  • East Dallas: in inventory
  • Tyler: in inventory
  • Arlington: in inventory


Part purpose:

Bake element causes the oven cavity to heat to the temperature set on the oven control.

Part location in Range or Wall Oven:

The oven element is in the bottom of the oven cavity sitting on the oven floor below the oven racks and is attached to the back wall of the oven.

Part failure symptoms:

Bake element will not get hot.

Part diagnosis:

Bake elements may fail in a manner that resembles a miniature firework display that leaves the element ragged and burned.  They can also fail with no visible evidence the bake element is bad.  The element can be removed by disconnecting all power from the range or oven.  Remove the screws attaching the element to the back wall of the oven.  Slide the bake element toward the front of the oven far enough to expose the wire connections.  Disconnect both wires from the element and take it to the nearest U-FIX-IT Appliance Parts store for free testing to confirm it is bad. Call the U-FIX-IT Appliance Parts store for free assistance with diagnosis.

Fits Whirlpool

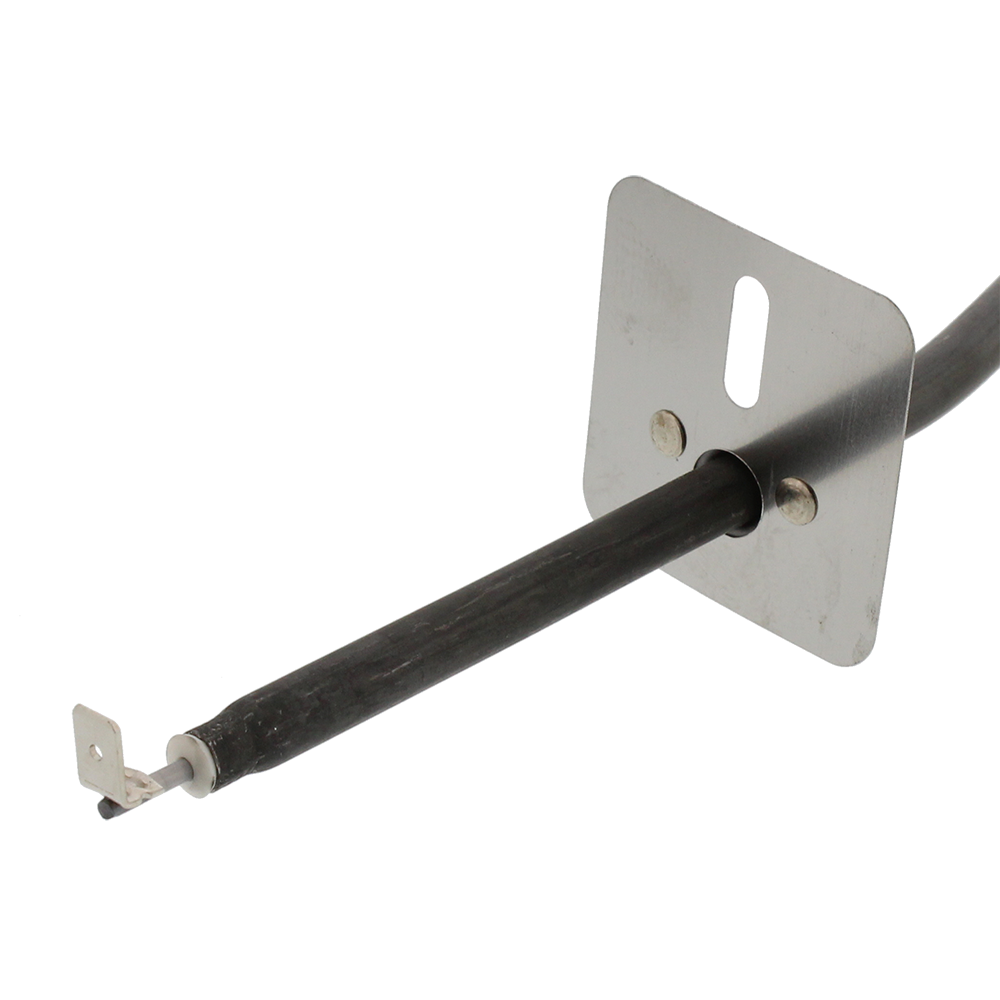

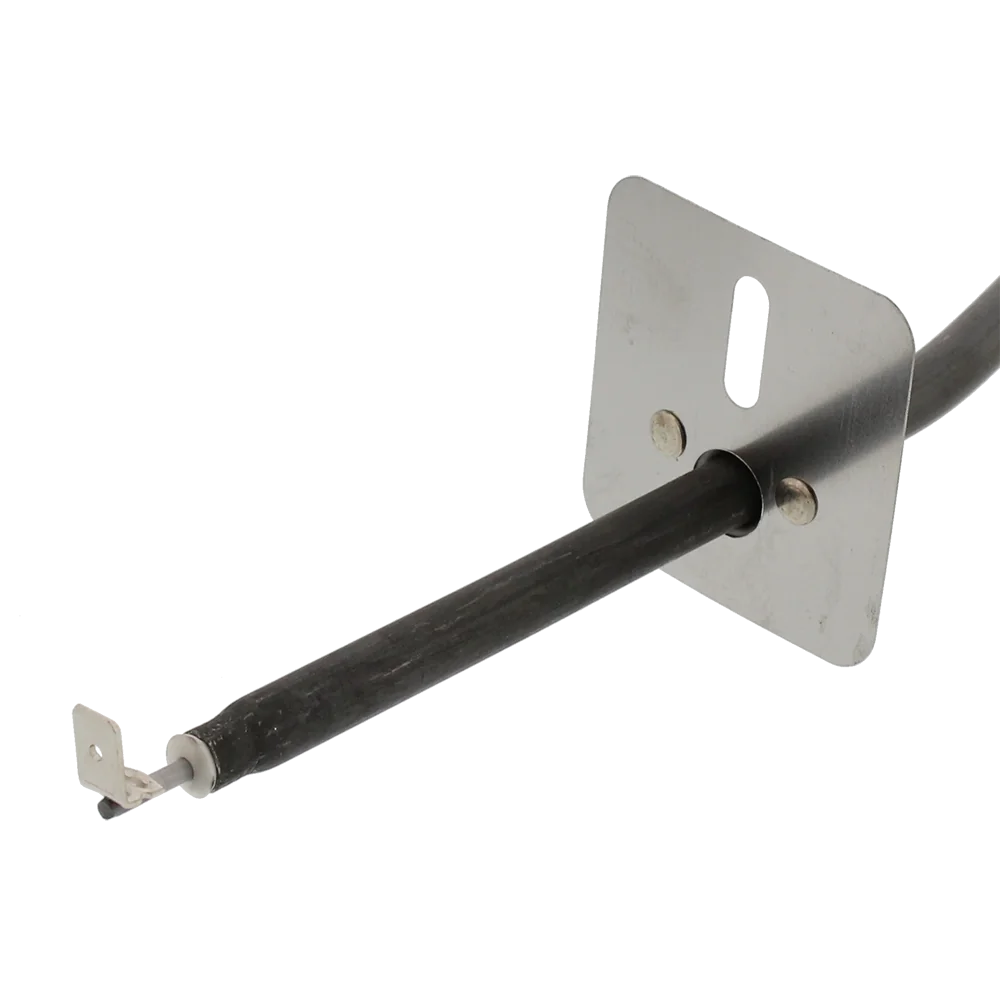

ER B775 bake element is a calrod element designed to produce an even heat.  240/208 volts, 2400/1800 watts. With 90° .250″ male terminal push-in connections.  An exact match of the wattage is not necessary.

Cross Reference Info:

Replaces 0089673 1312853 202-872892-001 3051519 306138 4165288 4165317 4371352 4371426 455988 501061 5303051519 5308003347 8002858 865940 868963 868964 B775 CH775 ERB775 K001311298 K001312853 K1312852 Q000212004 Q212004 RP775 TS775 WB44X221 WB44X5089 WP865940

Also fits: Whirlpool #865940, Electrolux #5303051519, GE #WB44X5089, Gemline #RP775, Chromalox/Supco #CH775, Zoppas #TS775.


Additional information

Weight 0.75 lbs

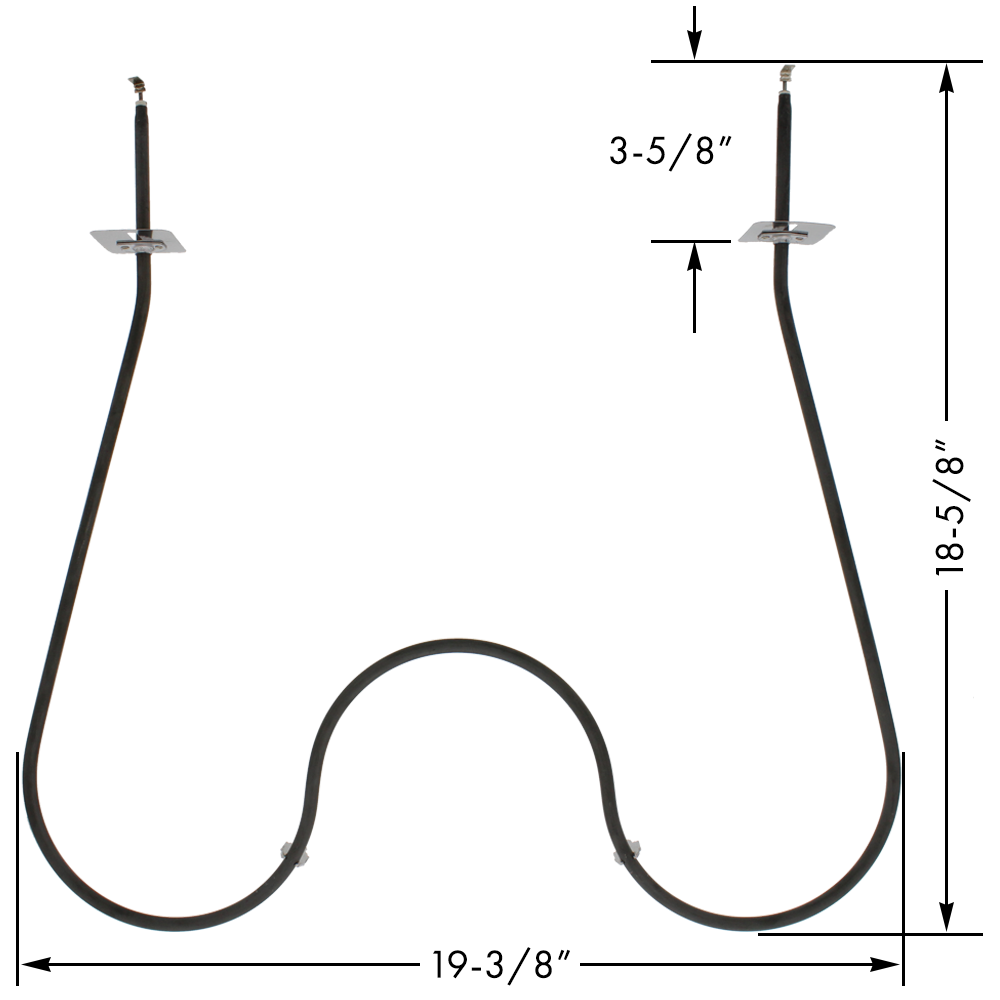

Dimensions 18.63 × 19.38 × 2.00 in
