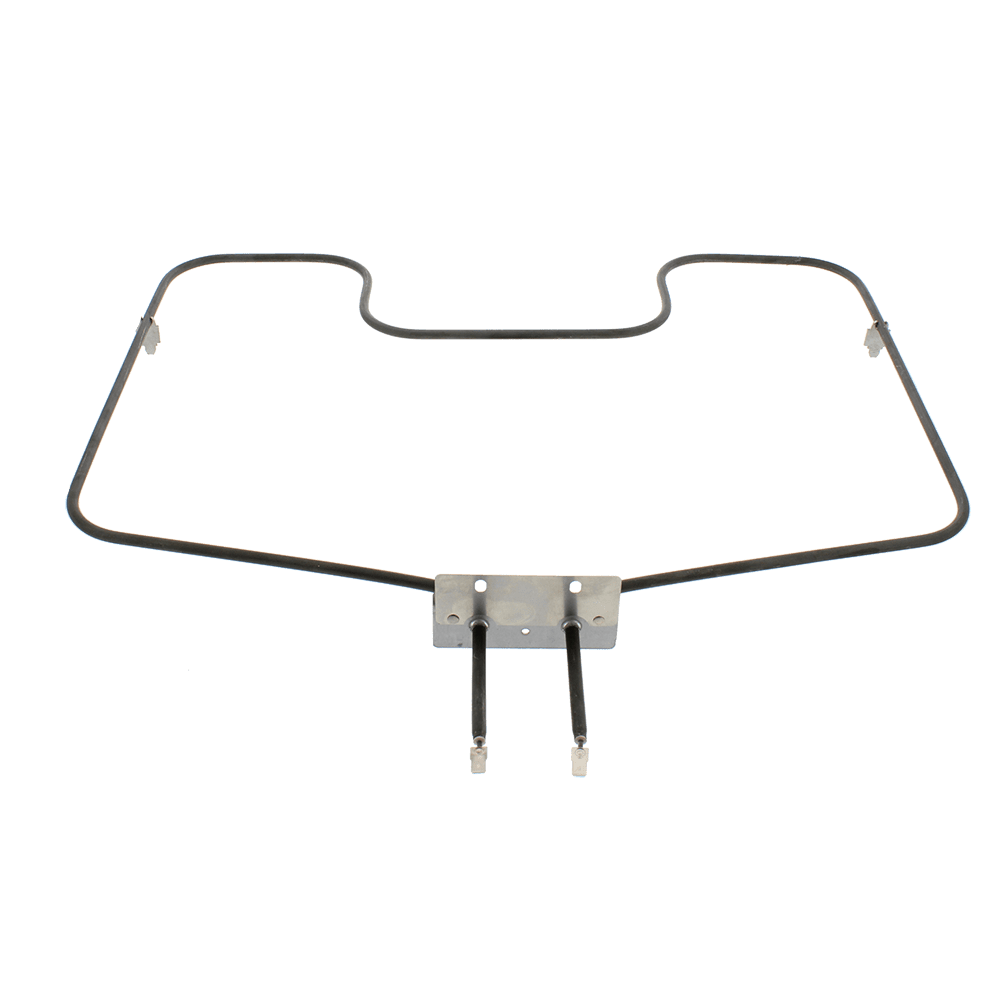

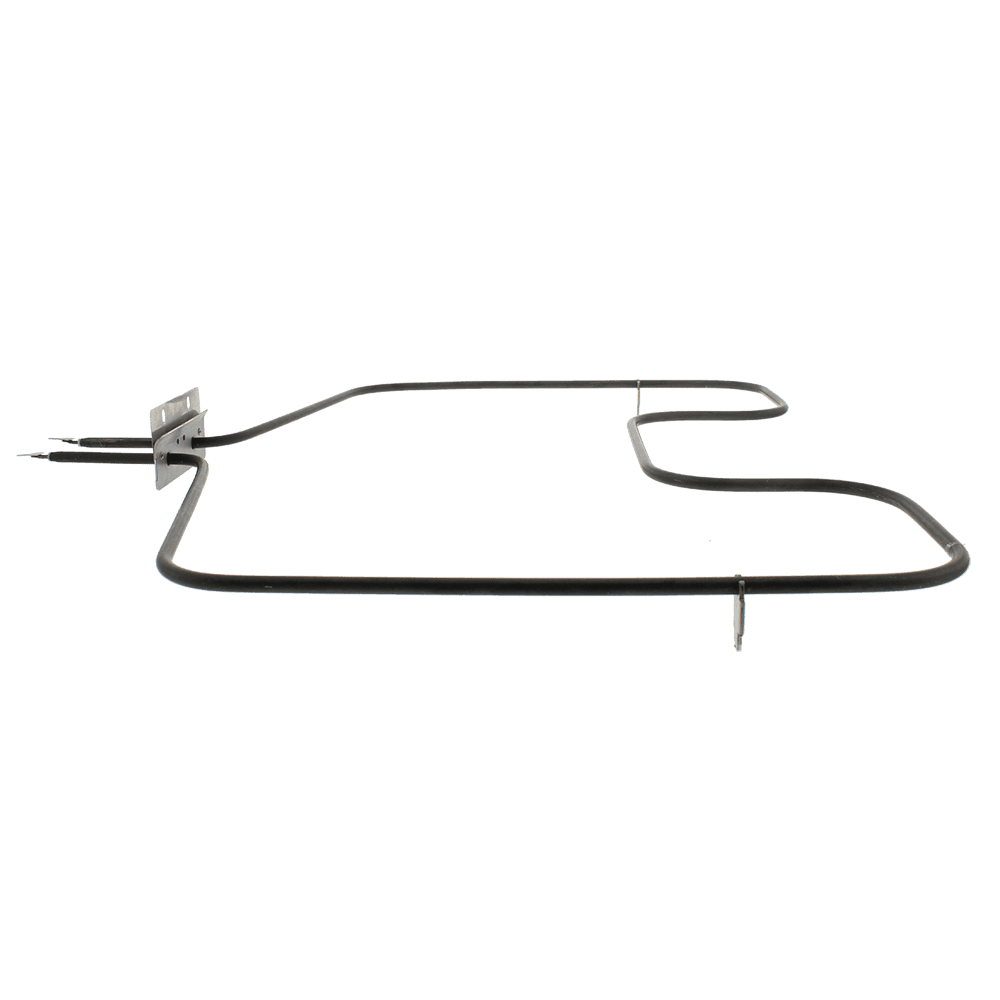

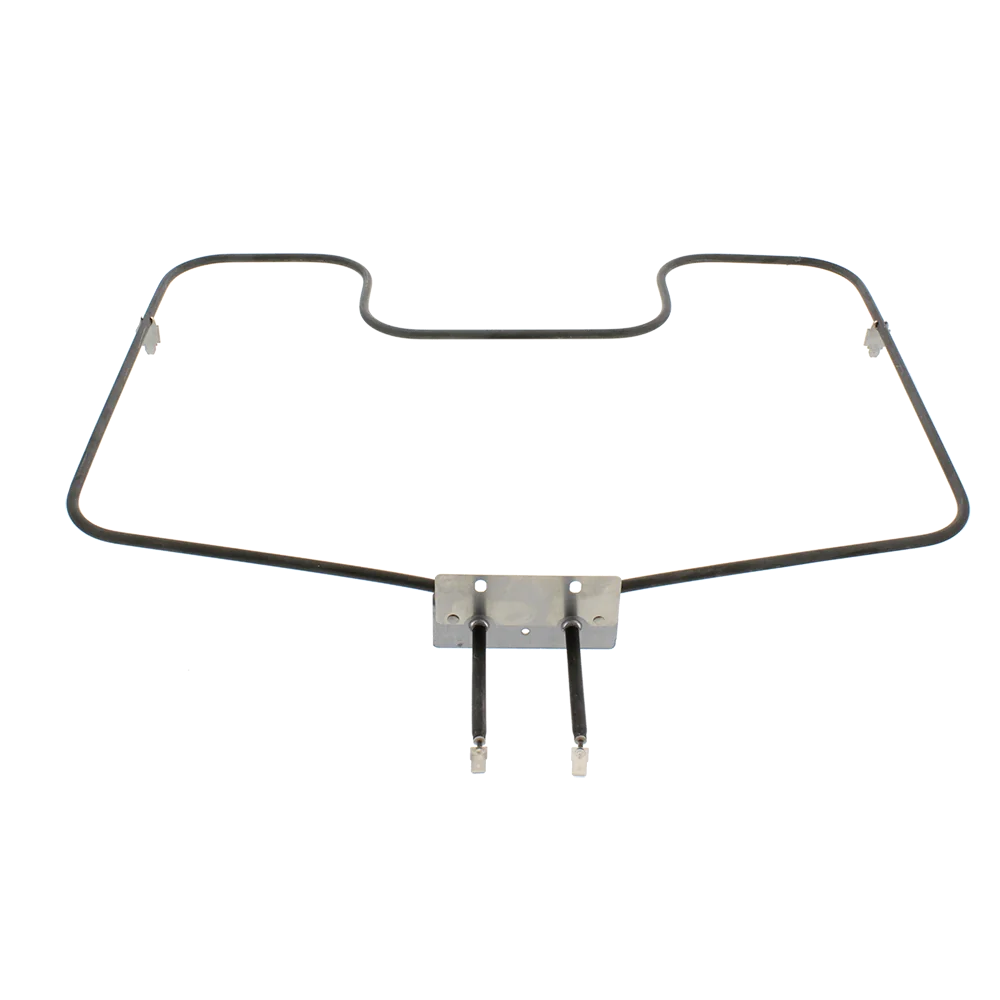

Part No. ER B777 Bake Element for Whirlpool


9 in stock

    Inventory at our locations
  • South Dallas: in inventory
  • East Dallas: in inventory
  • Tyler: in inventory
  • Arlington: in inventory


Part purpose:

Bake element causes the oven cavity to heat to the temperature set on the oven control.

Part location in Range or Wall Oven:

The oven element is in the bottom of the oven cavity sitting on the oven floor below the oven racks and is attached to the back wall of the oven.

Part failure symptoms:

Bake element will not get hot.

Part diagnosis:

Bake elements may fail in a manner that resembles a miniature firework display that leaves the element ragged and burned.  They can also fail with no visible evidence the bake element is bad.  The element can be removed by disconnecting all power from the range or oven.  Remove the screws attaching the element to the back wall of the oven.  Slide the bake element toward the front of the oven far enough to expose the wire connections.  Disconnect both wires from the element and take it to the nearest U-FIX-IT Appliance Parts store for free testing to confirm it is bad. Call the U-FIX-IT Appliance Parts store for free assistance with diagnosis.

Fits Whirlpool

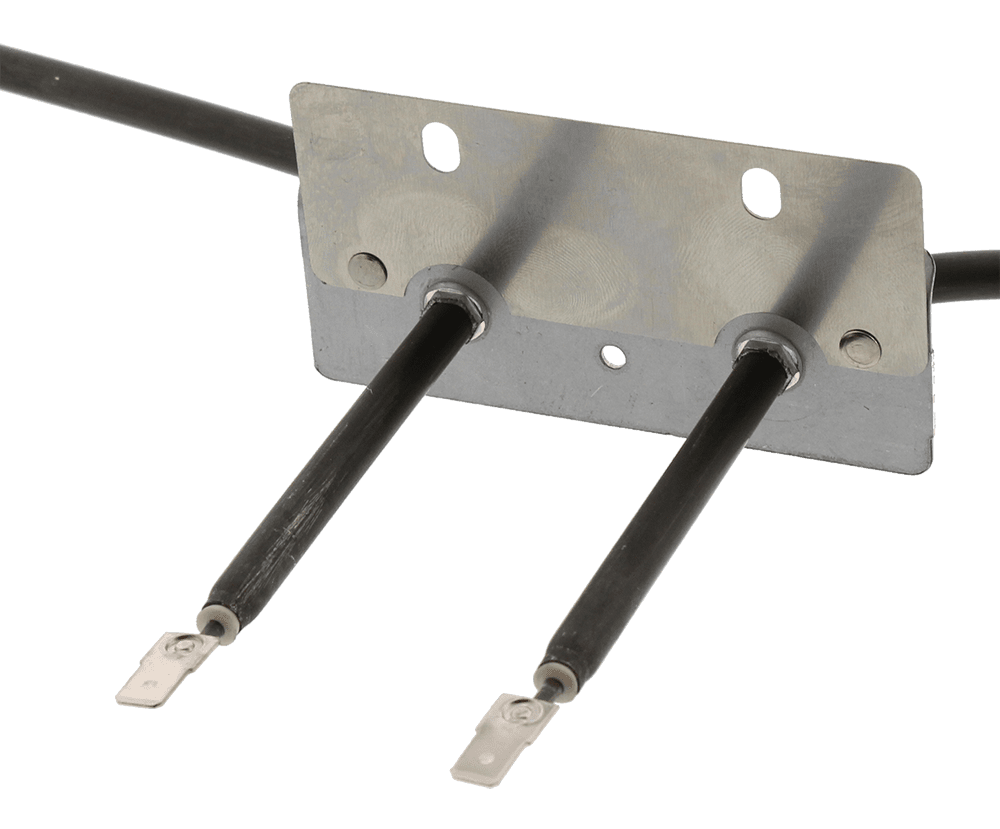

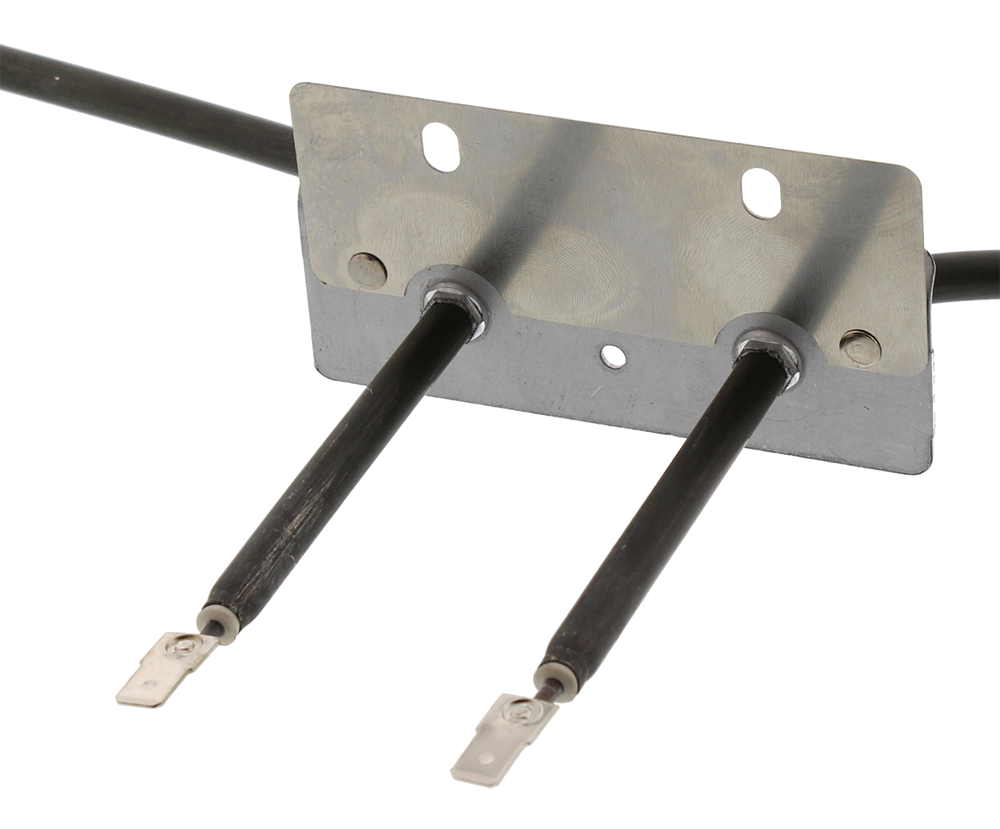

 ER B777 bake element is a calrod element designed to produce an even heat.  240/208 volts,  2750/2065 watts with .250” male terminal push-in connections.  An exact match of the wattage is not necessary.

Cross Reference Info:

Replaces 202-872858-001 296119 301444 4328405 4352784 454926 B777 CH2858 ERB777 F83-333 RP777 TS777

Also fits: Whirlpool #4328405, #301444, Chromalox/Supco #CH2858, Gemline #RP777, Zoppas #TS777.


Additional information

Weight 0.75 lbs

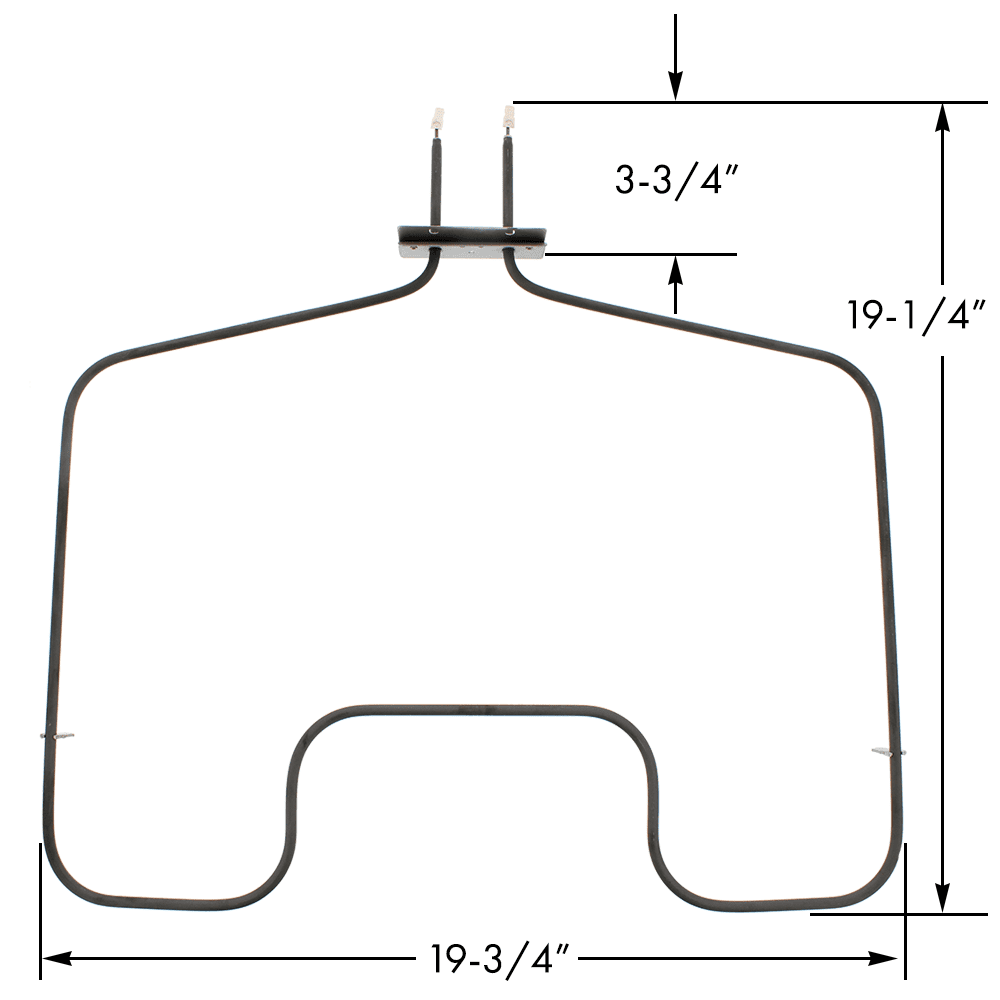

Dimensions 19.13 × 19.63 × 1.88 in
