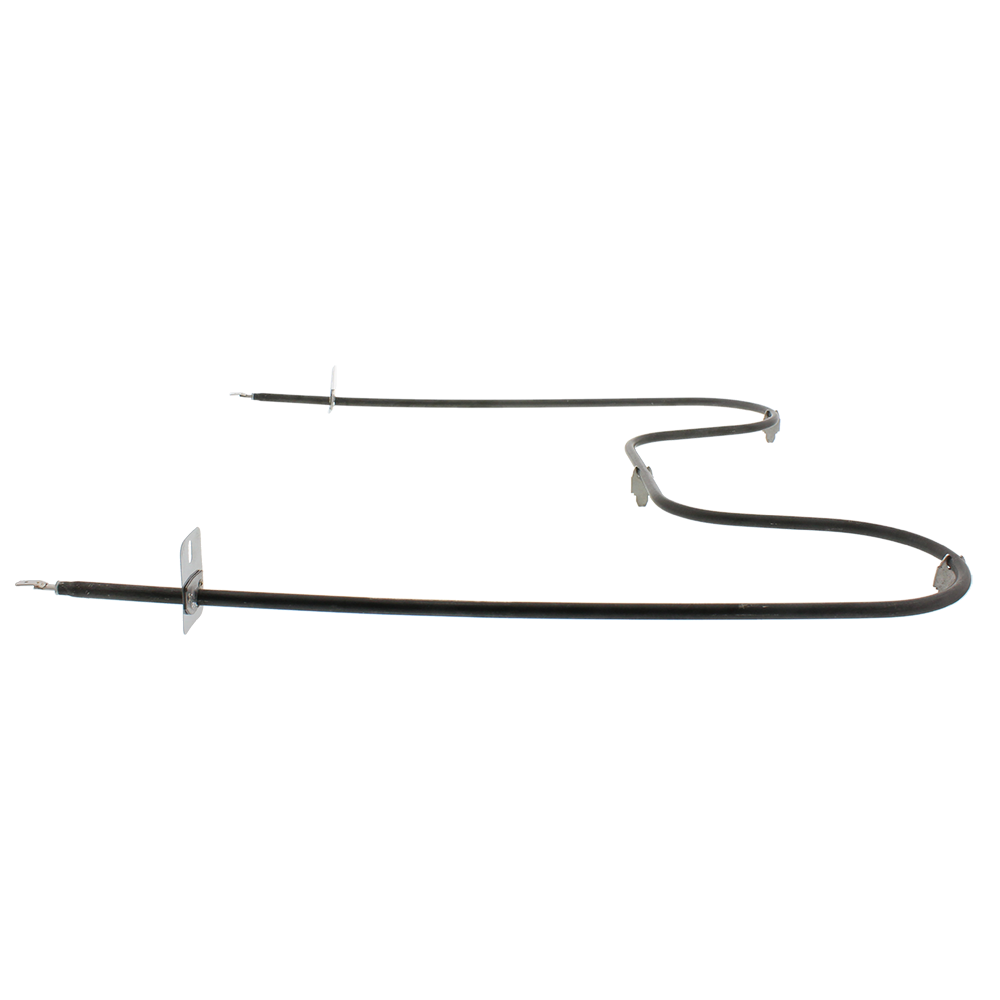

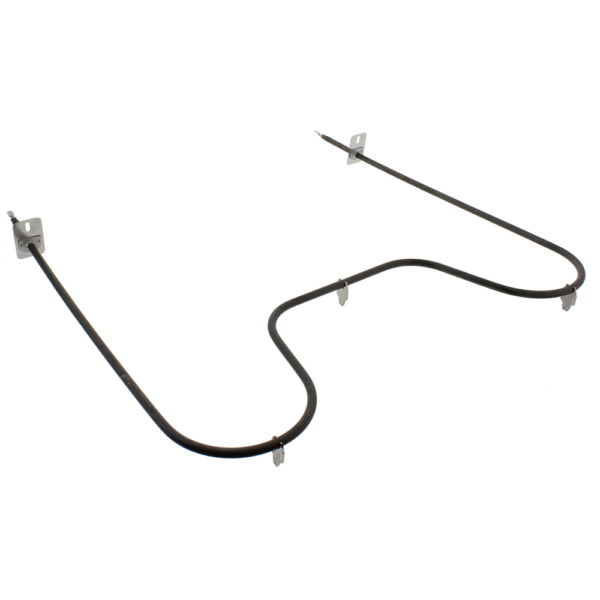

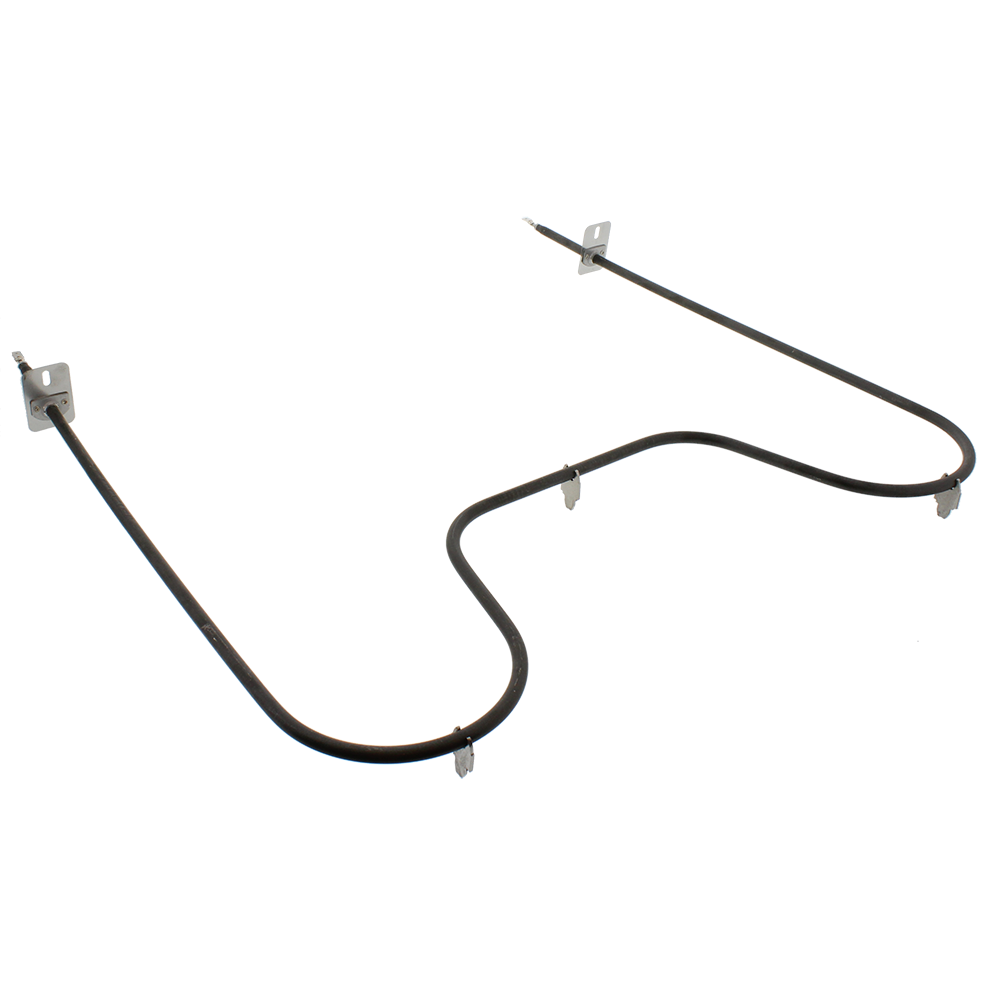

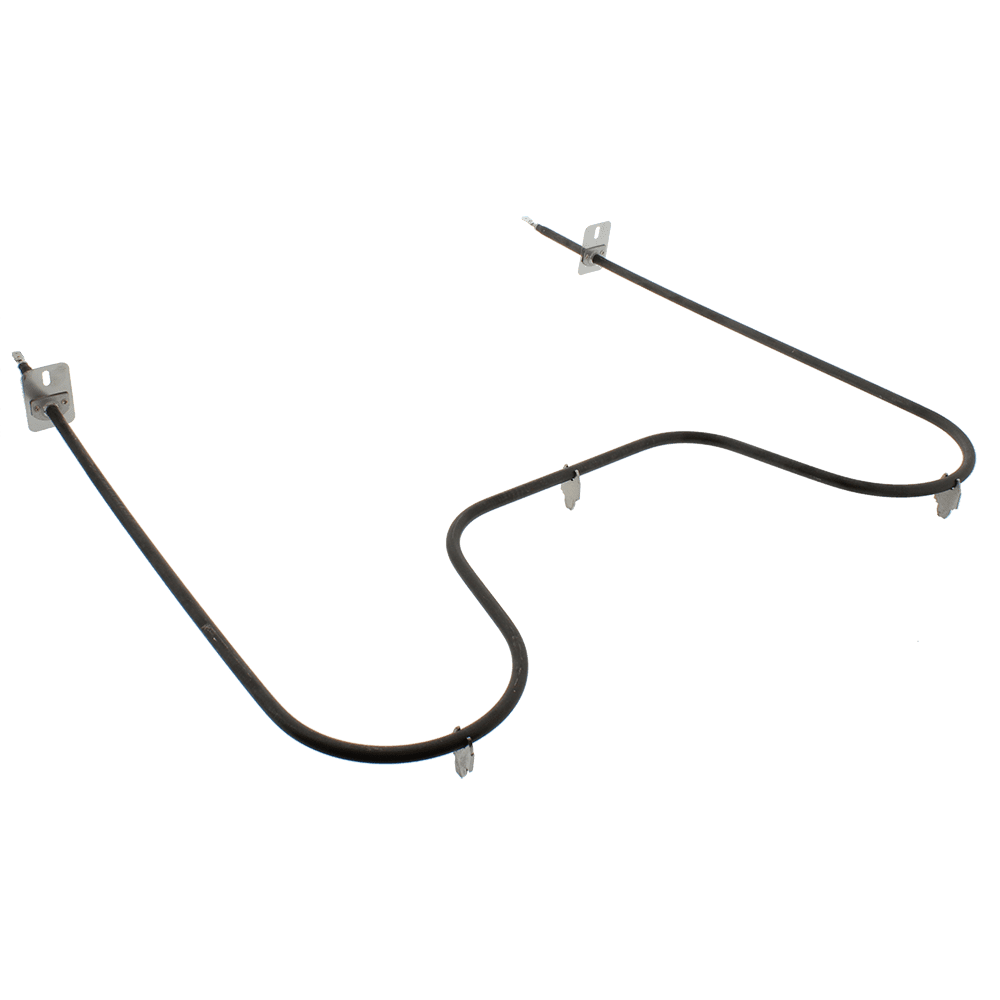

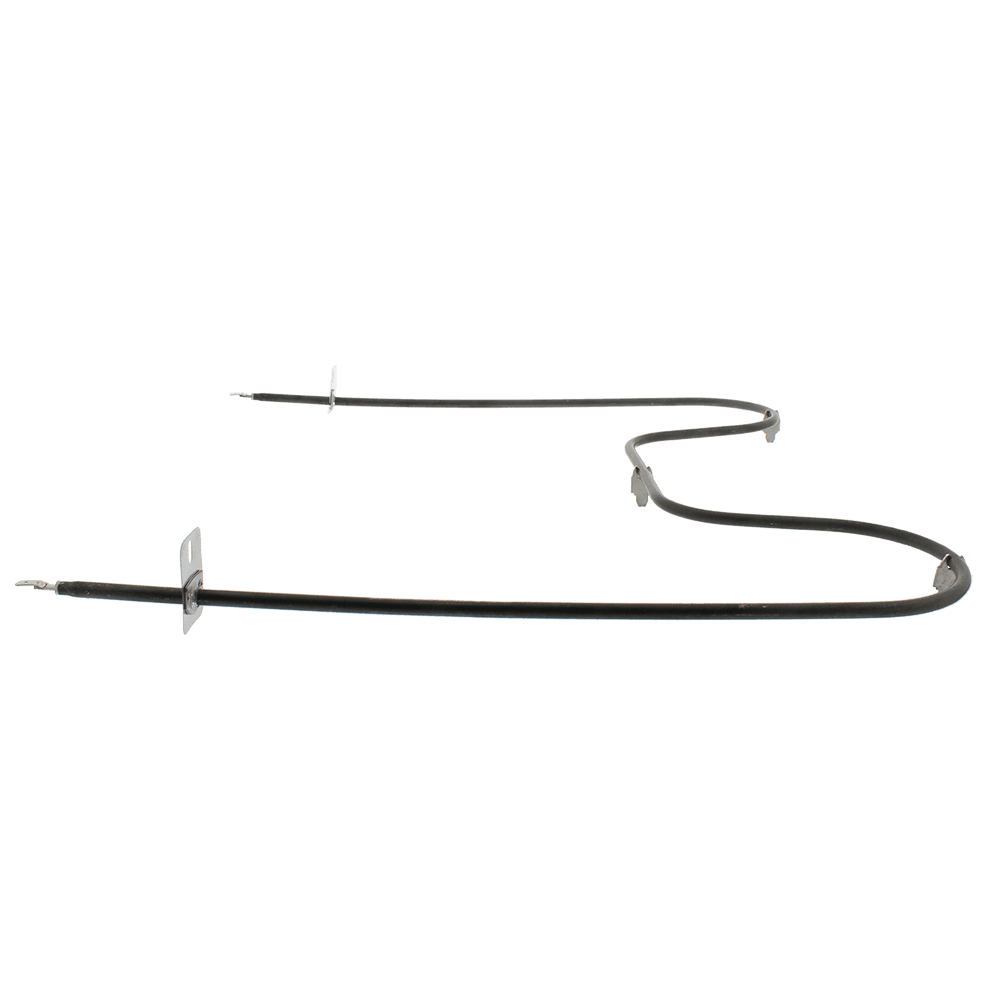

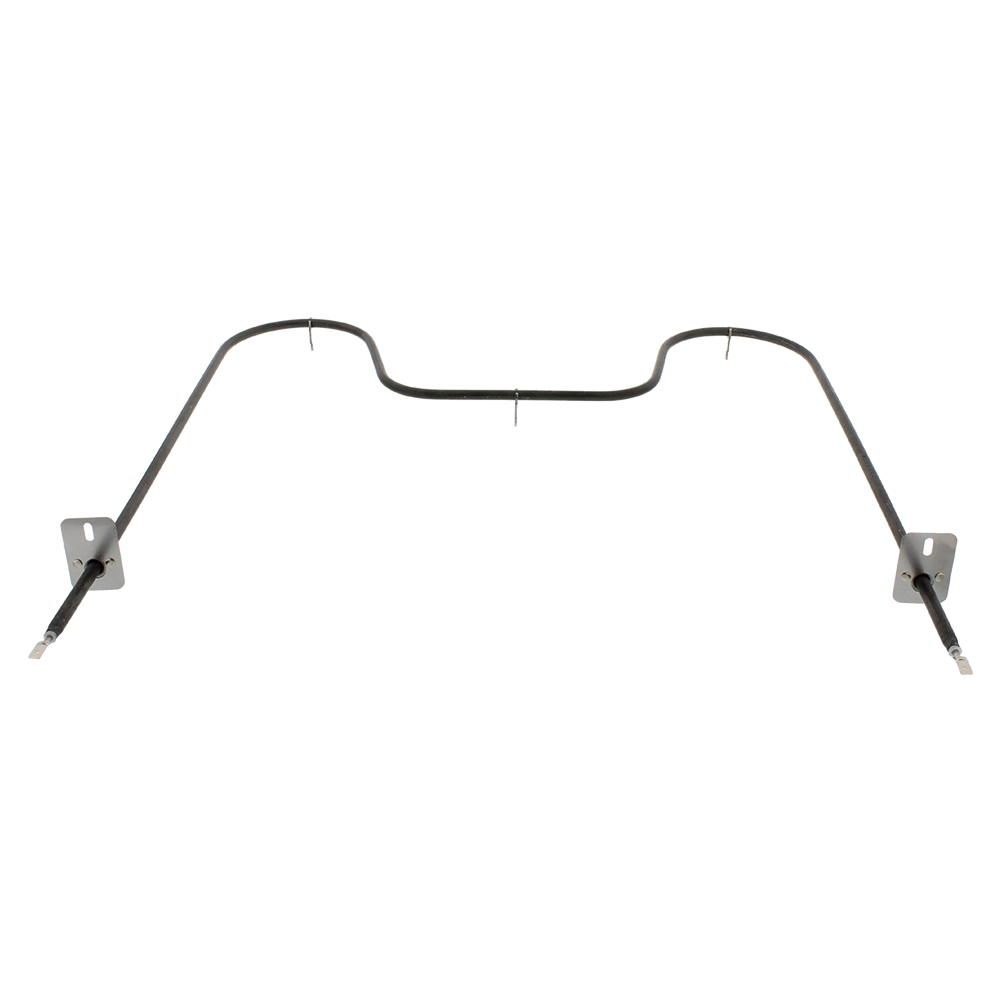

Part No. ER B7019 Bake Element for Whirlpool

$44.75

20 in stock

    Inventory at our locations
  • South Dallas: in inventory
  • East Dallas: in inventory
  • Tyler: in inventory
  • Arlington: in inventory

Description

Part purpose:

Bake element causes the oven cavity to heat to the temperature set on the oven control.

Part location in Range or Wall Oven:

The oven element is in the bottom of the oven cavity sitting on the oven floor below the oven racks and is attached to the back wall of the oven.

Part failure symptoms:

Bake element will not get hot.

Part diagnosis:

Bake elements may fail in a manner that resembles a miniature firework display that leaves the element ragged and burned.  They can also fail with no visible evidence the bake element is bad.  The element can be removed by disconnecting all power from the range or oven.  Remove the screws attaching the element to the back wall of the oven.  Slide the bake element toward the front of the oven far enough to expose the wire connections.  Disconnect both wires from the element and take it to the nearest U-FIX-IT Appliance Parts store for free testing to confirm it is bad. Call the U-FIX-IT Appliance Parts store for free assistance with diagnosis.

Fits many GE, General Electric, Hotpoint ranges and ovens

Description:

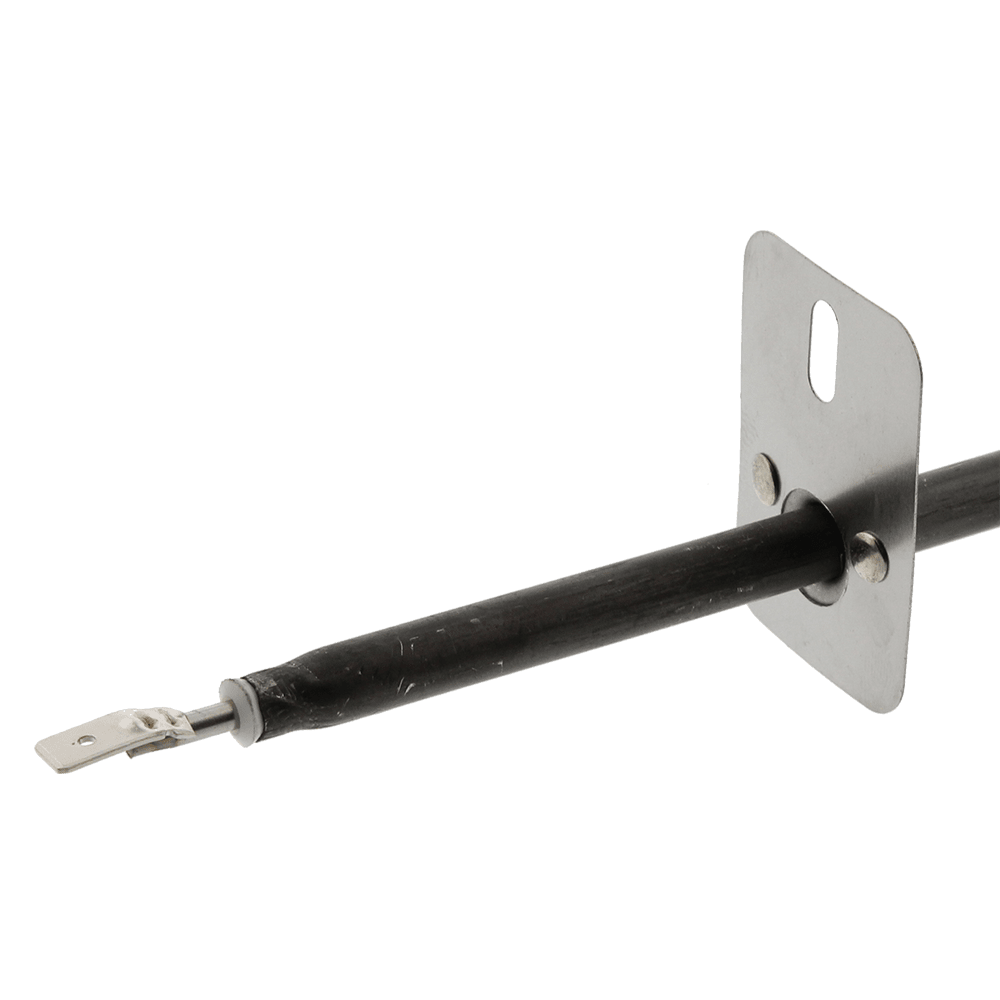

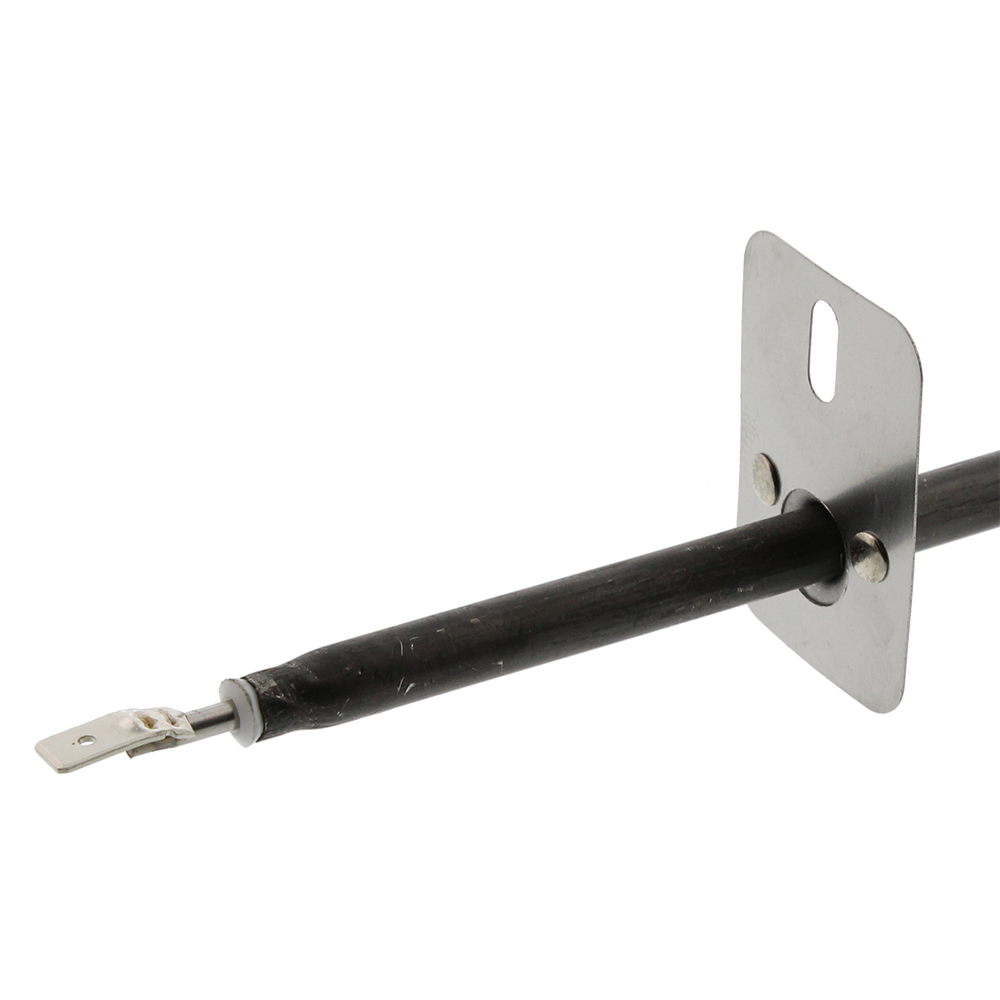

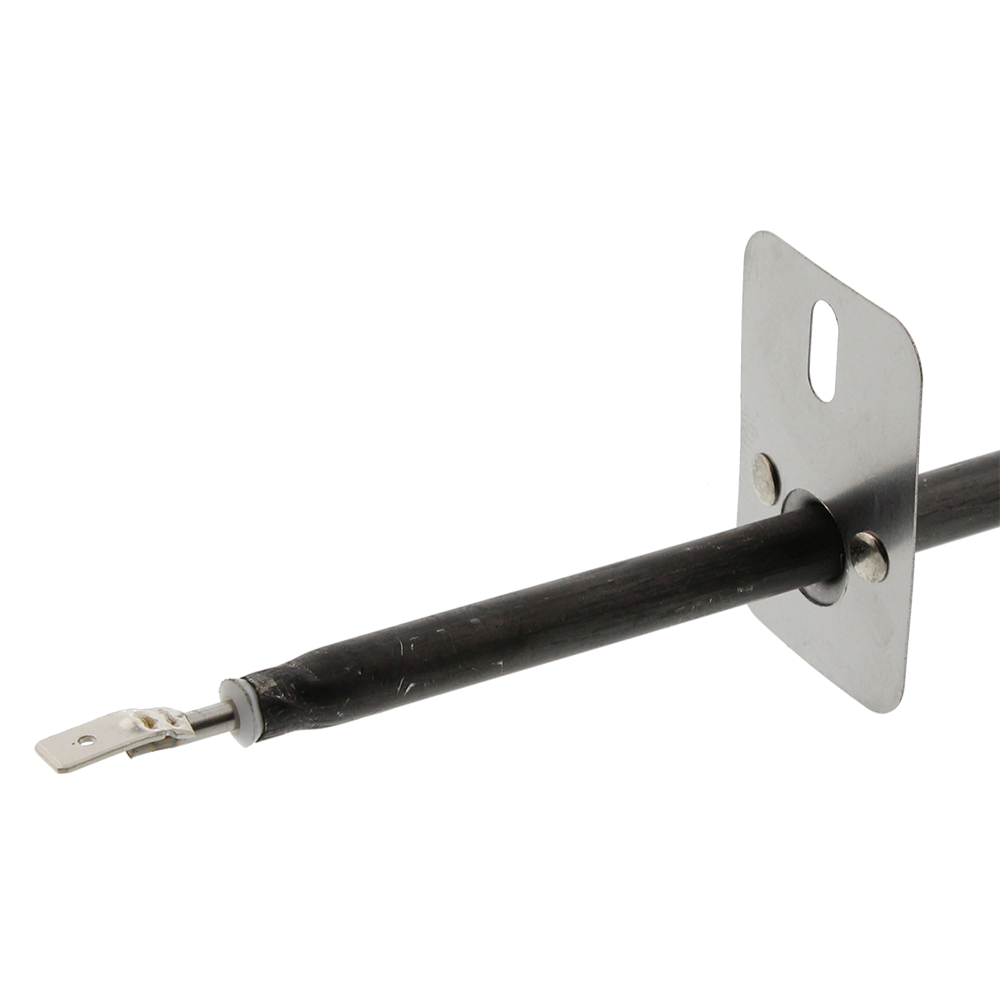

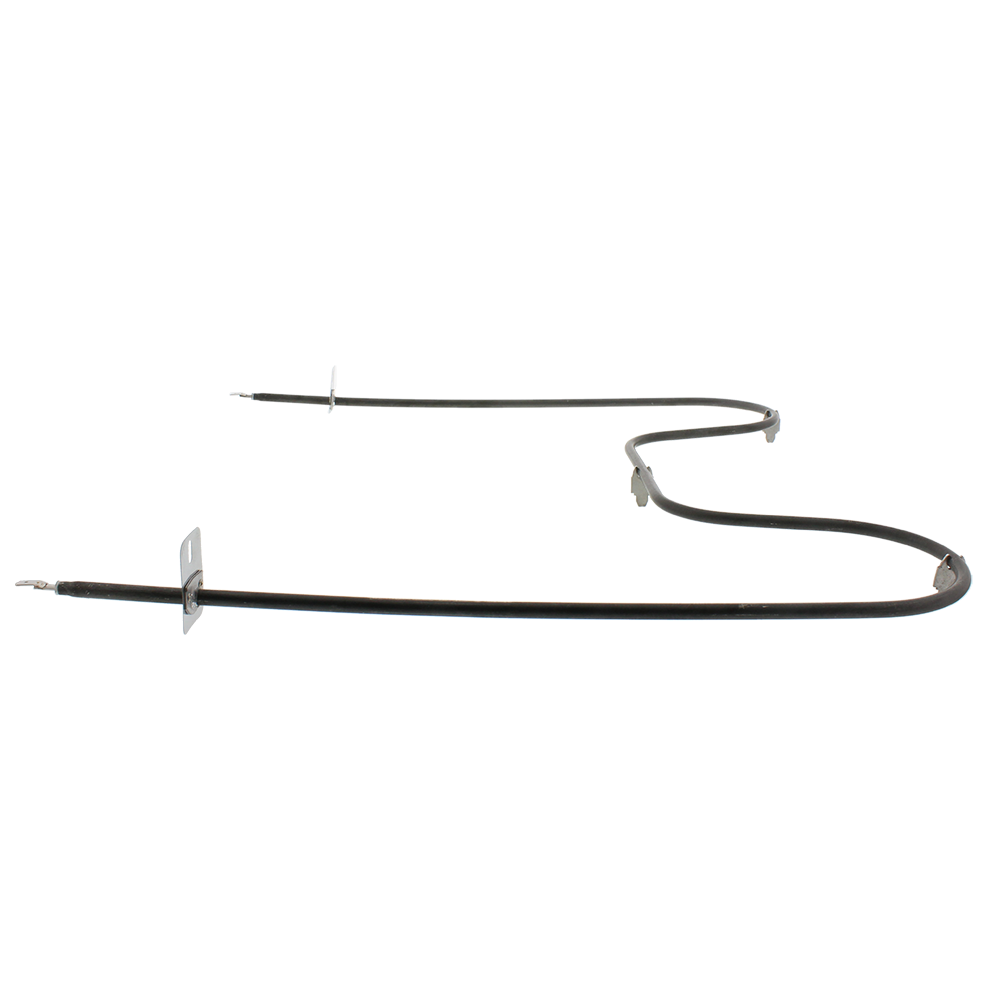

ER B7019 bake element is a calrod element designed to produce an even heat.  240/208 volts, 2800/2100 watts with .250” male terminal push-in connections.  An exact match of the wattage is not necessary.

Cross Reference Info:

Replaces 492391 501233 74003019 B7019 CH6372 CH7019 ERB7019 RP7019 TS7019 WP74003019

Also fits: Gemline #RP7019, Whirlpool #74003019, Zoppas #TS7019.



Additional information

Weight 0.75 lbs

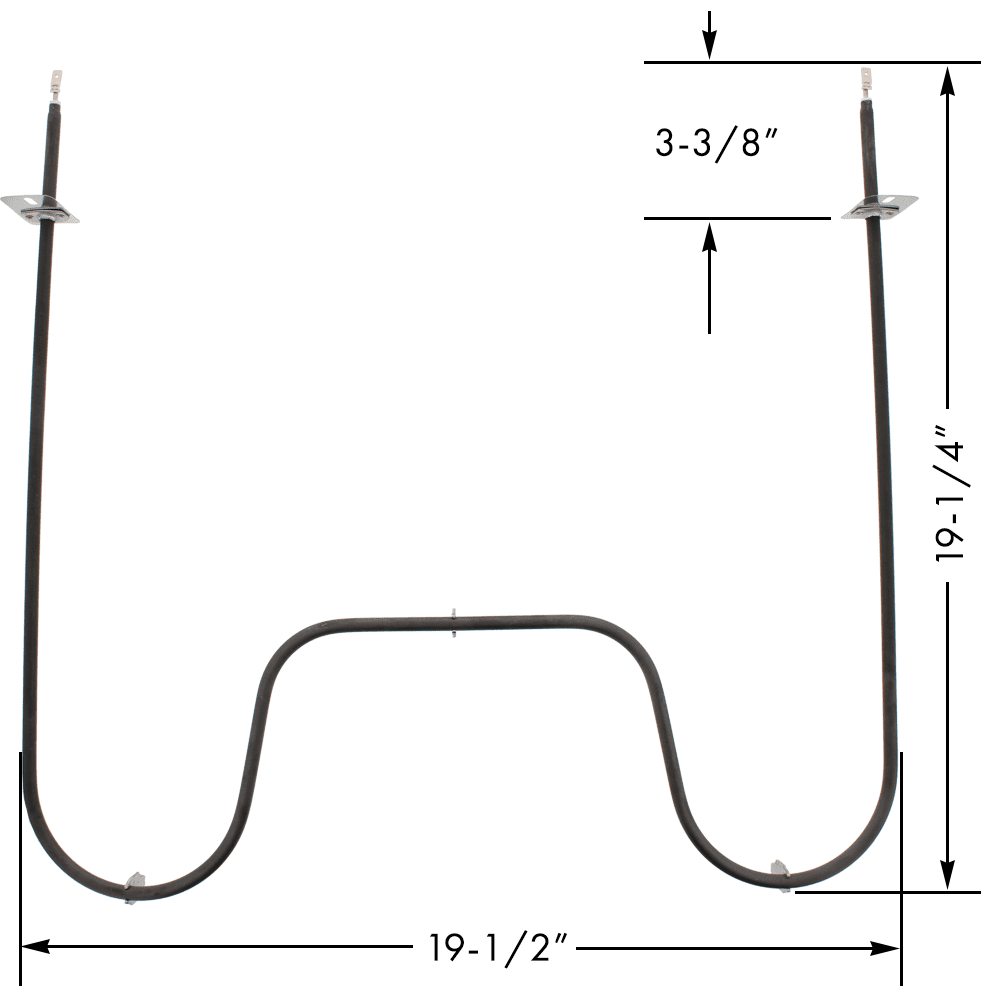

Dimensions 19.25 × 19.50 × 1.88 in
